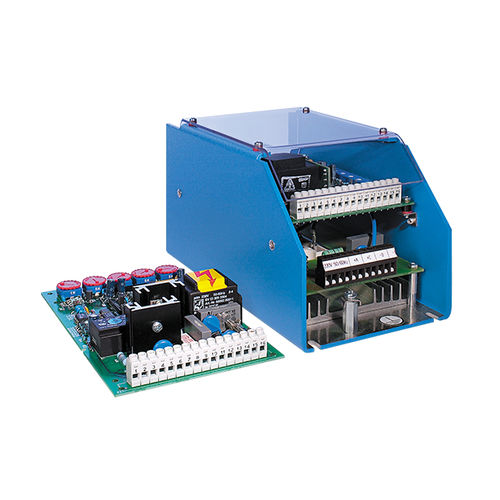

DC motor drive SGP

DC motor drive SGP

DC motor drive SGP

About


Features

•for motors with external and permanent excitation
•one-quadrant operation
•control range with armature voltage control 1:30
•control range with tachometer control 1:100
•degree of protection IP 00

Functions

•half-controlled symmetrical
•bridge circuit with excitation voltage source
•adjustable current controller and
•thus very suitable for permanently excited motors

Options

•with isolating module (P)
•pluggable with pin connector DIN 41617 (ST)
•pluggable with isolating module (ST/P)

Preferred application areas

•conveyors
•printing machines
•pumps
•rotary table drives
•welding wire feed mechanisms
•packaging machines
•others



PARAMETERS

Parameter Name Parameter Value
Type
thyristors
Other characteristics
  • motor
  • with speed control
Power (W)
250 - 250
Intensity (A)
3 - 16
