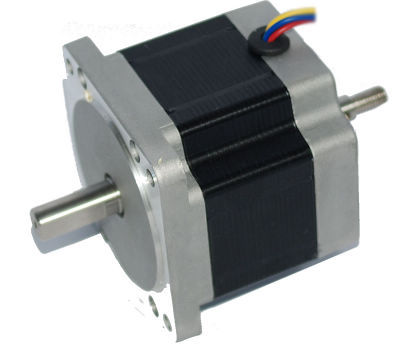

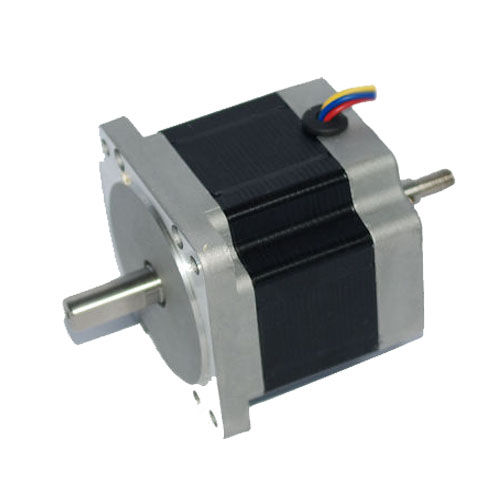

Hybrid stepper motor with nema sizes 08, 11, 14, 15, 17, 23, 24, 34 and 42. Customization is possible and motor adders like linear, geared, encoder and brake are RoHs compliant. These motors are manufactured from professional stepper motor manufacturers in China with their base at City Changzhou, near Shanghai. They are able to manufacture the motor at economical rates because of the easy availability of raw materials. The torque availability are 2.5 to 5,700 ounce-inches. The step angles are 0.9, 1.8 and 3.6 degrees. The stepper motor comes in two kinds: as square-bodied and round version. They come in :2,3,4 and 5 Phases too. They are about six stack lengths with several windings in each of them. There are four, six or eight lead wires, and sometimes conduit boxes. It is possible to select from the linear and geared versions. The company provides excellent customer service too.

Parameter Name	Parameter Value
AC/DC	DC
Type	stepper
Voltage (V)	24 - 24
