About

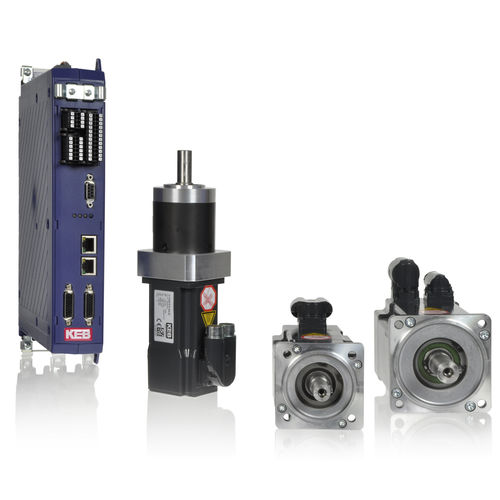

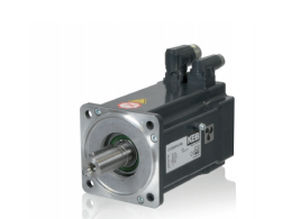

Designed as a system solution with COMBIVERT S6 actuators, the DL3 series offers universal motor series with smooth surface and compact angle connectors for use in mechanical engineering. The universal winding ensures flexible use on 230V and 400V actuators. Easy installation with pre-assembled connectors form the wiring for the motor and encoder system, available in lengths of 1 to 50 m.

Properties
■ Pivotable angle connectors, protection type IP54, smooth shaft
■ 12 bit resolver (SAFETY READY)
■ KTY thermal winding protection
■ Optional: permanent magnet brake, Hiperface Single- 17bit and Multiturn 12/17bit, shaft with feather key

Dynamic Line DL2
The DL2 series is designed to meet additional requirements with further rated speeds and additional encoder system options.

Properties
■ Pivotable angle connectors, protection type IP54, smooth shaft
■ 12 bit resolver
■ PTC thermal winding protection

Optional:
■ permanent magnet brake
■ BISS Single- 19bit and Multiturn 12/19bit
■ shaft with feather key
■ protection class IP65 on the shaft side



PARAMETERS

Parameter Name Parameter Value
AC/DC
DC
Type
universal
Voltage (V)
220 - 230
Protection class
  • IP54
  • IP65
Configuration
  • permanent magnet
  • compact
Applications
with built-in encoder
Torque (Nm)
0.2 - 70
Rotational speed (rpm)
2000 - 8000
