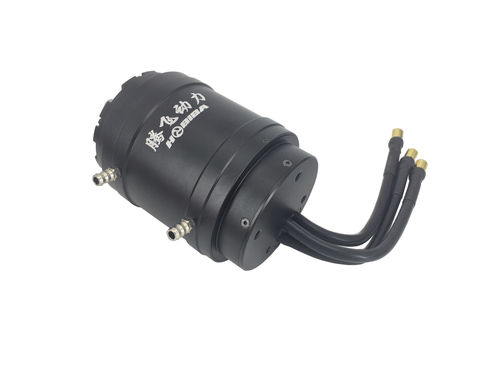

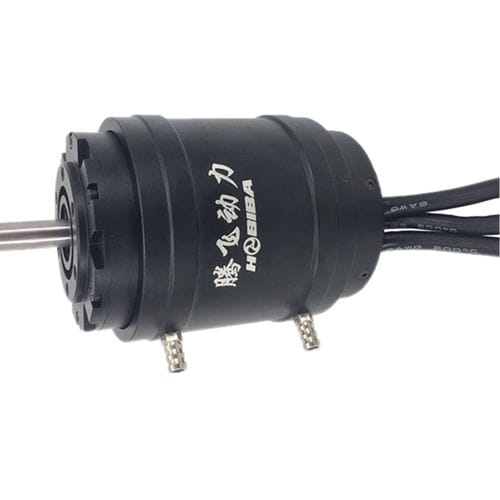

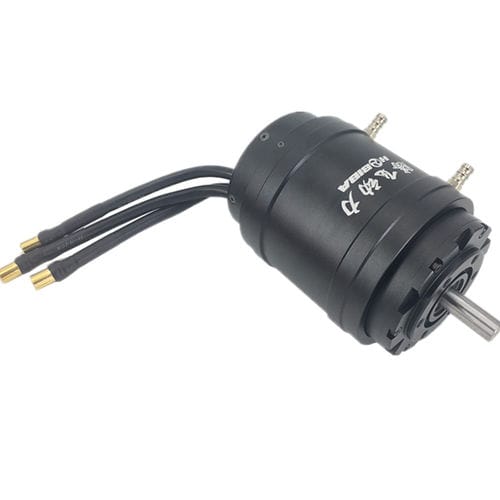

D85L134 Water-Cooled Brushless Motor 12kw
D85L134 motors are designed for high performance gearless use, and are ideal for underwater thruster applications where rapid acceleration and high speed are called for.
Protection Level: IP68 Electric Motor
Diameters at 85mm
Configuration: 12N10P
Speeds up to 12,348 rpm
Maximum output power up to 12KW
Maximum Torque output up to 22N*m
Cooling Solution: Water cooling
Thanks to the modern sealing technology, these water-cooling motors are usually customized to fit into water-tight chamber shell to form a whole motor system, and are not expected to dip in water. They can be operated permanently underwater and have been widely used for high speed underwater thruster in various water sports, like efoil, e-surfboard, eSUP, hydrofoiling, Foiling boat.etc
Key features:
- Robust & durable: Outer shell in black anodizing aluminum alloy, prevent against corrosion and oxidation.
- High performance: Our motors provide extremely high torques with a minimum of power consumption.
- Silient: low-cogging electro-magnetic and dynamically balanced rotor, extremely silient and smooth operation.
- High Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%.
- Compact: High efficiency and high power density realized in a compact design.
- Long life: Double seal ball bearings with moisture resistant for long life.
- Cooling solution: water-cooling & Air-Cooling.
- Shaft in SS316 Stainless Steel: withstand redial/axile stree,and against corrosion.
Can be customized for
Sensor or sensorless
Winding Current
Shaft Options
Cable and Connector
Kv Ratings
Mounting Options
Encoder or Non
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
DC
|
| Type |
brushless
|
| Voltage (V) |
16 - 16
|
| Protection class |
|
| Configuration |
|
| Number of poles |
10-pole
|
| Cooling mechanism |
|
| Applications |
|
| Other characteristics |
custom
|
| Power (W) |
0 - 12000
|
| Intensity (A) |
0 - 380
|
| Torque (Nm) |
0 - 21.8
|
| Rotational speed (rpm) |
0 - 12348
|
| Diameter (mm) |
85 - 85
|
