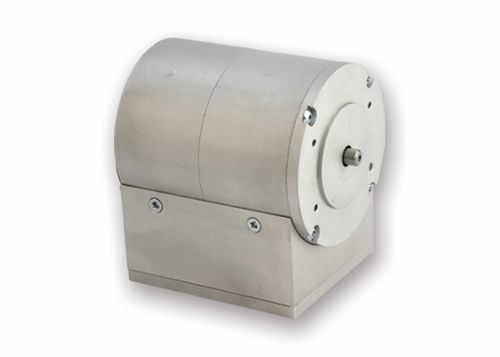

Compact High Torque Brushless motors to 300 watts+, new innovative compact design giving high performance in a small footprint.

CTM1 FEATURES:

* Voltage Range: 12 or 24 VDC
* Continuous Output Power: 250 Watts
* Maximum Output Torque: 1Nm
* Speed Range: 3790 RPM
* Size Diameter: 87mm
* Size Length: 66mm
* Weight: 1.16Kg
* Enclosure Rating: up to IP54
* Insulation: Class F
* Connection: Flying Leads
* Brake Option: Yes

CTM2 FEATURES:

* Voltage Range: 12 or 24 VDC
* Continuous Output Power: 350 Watts
* Maximum Output Torque: 1.5Nm
* Speed Range: 3700 RPM
* Size Diameter: 87mm
* Size Length: 72mm
* Weight: 1.92Kg
* Enclosure Rating: up to IP54
* Insulation: Class F
* Connection: Flying Leads
* Brake Option: Yes


minimum order quantity: 100 units per annum

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Voltage (V)	24 - 24
Power (W)	250 - 250 350 - 350
