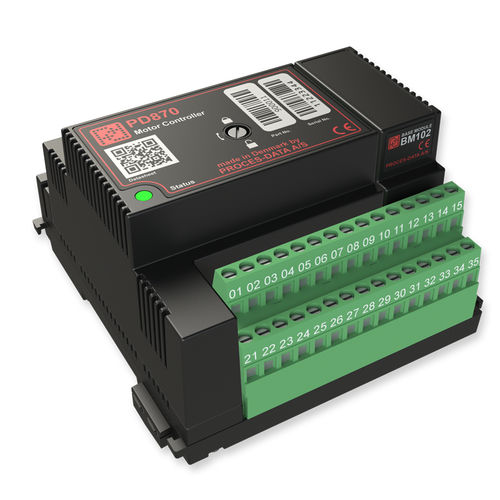

Be aware that the Motor Controller is a combination of the PD870 COPP controller and the BM102 high power base module.

PD 870 is a device in the M100 series with high power channels.
The device offers 15 channels as interface for various types of process signals.

The 15 channels consist of:

• 2 Digital output
• 10 Digital input simple or Non copp controlled quadratur counter
• 1 Fast input (50kHz)
• 1 Single quadrature counter – channel 1-3 is reserved as inputs
• 1 Differantial quadrature counter – channel 1-6 is reserved as inputs
• 1 Bidirectional high power output – channel 11-12 is reserved as outputs
• 1 Twin high power output – channel 11-13 is reserved as outputs
• 1 Parallel high power output – channel 11-13 is reserved as outputs

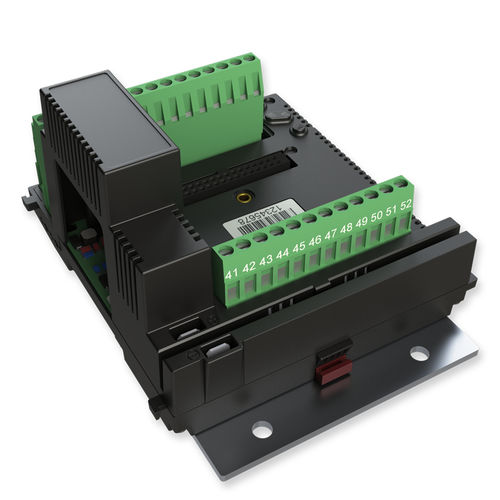

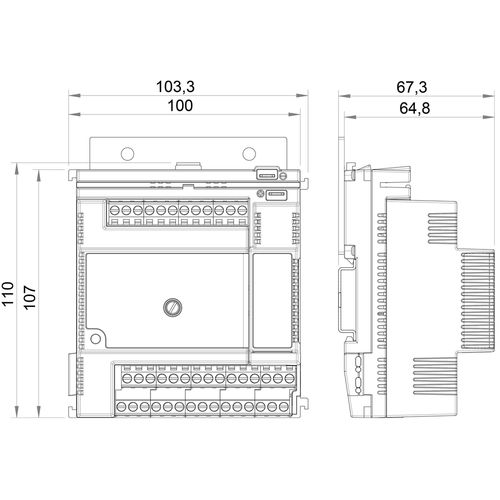

PD 870 is used with the BM 102 base module that provides the I/O terminals, power supply connection and P-NET light-link communication interface, and power output.

PD 870 has two terminals for all the channels for connection to the process signals, respecting the demand for only one wire in each terminal, ensuring a safe and straight forward design- and installation process. One of the two terminals is with the negative supply and the other is the input / output terminal. Some channels are virtuelle, meaning they don”t physically exist but control other channels in order to achieve the required functionality.

Furthermore the PD 870 offers a P-NET fieldbus communication interface via light-link providing a simple and efficient communication to other devices using the P-NET communication protocol.

Parameter Name	Parameter Value
AC/DC	DC
Motor type	stepper
Other characteristics	digital combination
Input/output	digital input, I/O
Input voltage	Min.: -0.5 VMax.: 30 V
Output voltage	24 V
Current (A)	20 - 20
