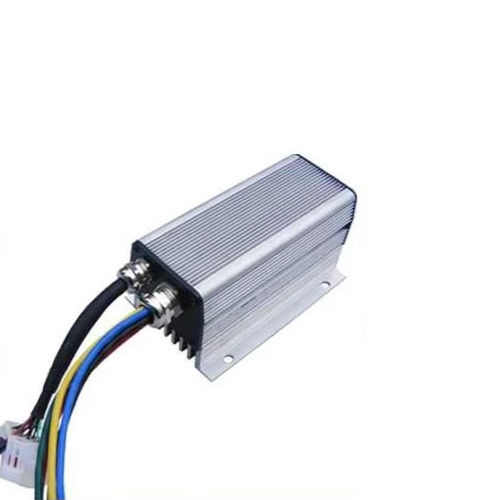

KLS-S controller.
For use with Brushless motors 24v to 48v.
Use for applications up to 30A continuous
Up to 120A maximum.

(Can also be used with 12v DC motors - a DC/DC converter is required for this and automatically included when 12v option is selected)

Features of this controller include:
-Synchronous rectification, ultra low drop, fast SVPWM and FOC to achieve very high efficiency
-Electronic reversing
-Voltage monitoring on 3 motor phases, bus and power supply
-Current sense on all 3 motor phases
-Current control loop
-Hardware over current protection & over voltage protection
-Configurable limit for motor current and battery current
-Durable aluminium housing for maximum heat dissipation
-Easy installation: 3 wire potentiometer will work
-Use of standard PC/Laptop to perform programming
-Supports motors with any number of poles
-Up to 70,000 electric rpm standard

Parameter Name	Parameter Value
AC/DC	DC
Motor type	BLDC
Input voltage	Min.: 24 VMax.: 72 V
Current (A)	30 - 80
