About

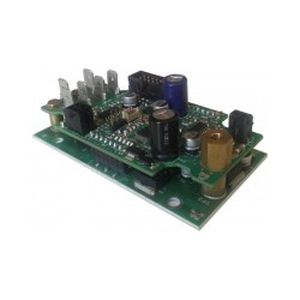

ECOPWR is an extremely compact motors controller engineered specifically for small cleaning machine.
It uses the last IMS technology to control simultaneously two different motors up to 40 amps such as Brush motor, Vacuum Motor and separate I/Os for the water pump.
ECOPWR is designed to work with a digital keyboard which SED develops custom made for each client.
Designed to be easily integrated in any machine.
ECO technology: extends the battery life and reduces the machine
noise during operations.
Smart Motor and board monitoring system ensures protection on
Under/over voltage, I2T, short-circuit, polarity inversions, controller
over-temperature.
Stand-by function prevents the controller draining the battery.
Diagnostic LED allows easy display of controller status.
Battery monitoring system ensure smooth and safe operations
Custom digital Keyboards ease integration in existing machines and remove the need of complex cabling procedures or other hardware to display the battery status.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
DC
|
| Motor type |
brushed
|
| Other characteristics |
|
| Applications |
for floor cleaning machines
|
| Input/output |
I/O
|
| Input voltage |
24 V
|
| Output voltage |
24 V
|
| Current (A) |
20 - 40
|
