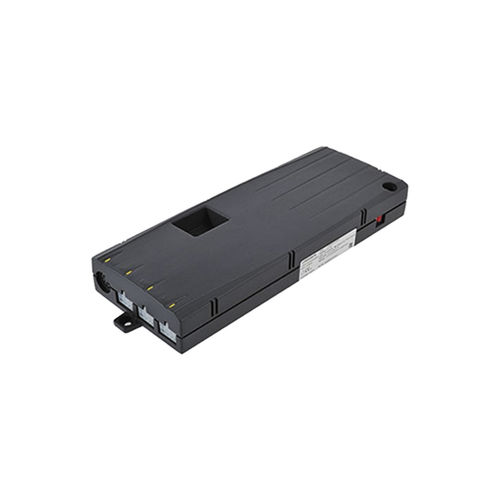

Compact is the control unit for hight adjustable workstations and is matched to all Ketterer drives.
With one control unit can be controlled:
up to three drives in parallel structure (one or two drives follow the master drive)
two drives synchronously (drives are individually controlled)
appropriate cables
Special features
Control box Compacteco, Firmware-Version 1.9
Voltage supply variants: 230 V and 110 V
Freely stroke with hand switch with display (HSU-MDF-4M2-LD or TOUCHfx) programmable
Ketterer can preprogram a desired stroke
Duty cycle 2 min. ON/ 18 min. OFF
Technical notes
Power cable has to be ordered separately.
For stroke programming or changing on site a hand switch with display is always required (see hand control and motor cables).
Please note the permissible duty cycle of the controller. If the operating times are exceeded the controller switches off automatically.
Attention: Electric drives usually have a shorterduty cycle than controllers and are thus system-leading.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
DC
|
| Motor type |
for synchronous motor
|
