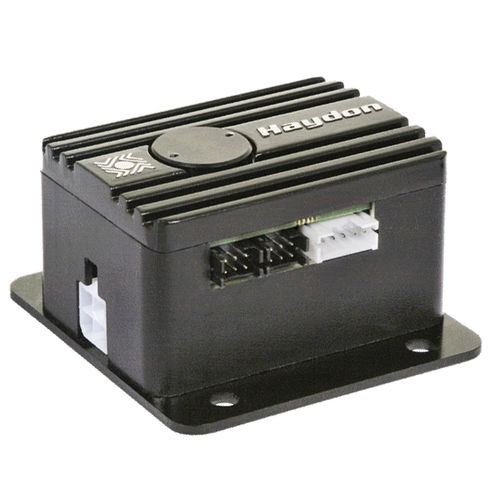

The ACM4806E and ACM4826E IDEATM Drive Stepper Motor Controllers use RS-485 for communication and are available in two current ratings. In addition to the stand-alone models, drives are available integrated on motor and linear actuator assemblies.

Features :

RS-485 Communication protocol
Stand-alone drive unit or integrated directly onto a linear actuator
Programming done through Graphic User Interface (GUI)
Automatic population of motor and drive parameters
Programmable Speed / Current / Accel-Decel / Current Boost / Interrupts / I/O
Encoder Input / Stall Detection with Compensation / Position Verification
Movement Profile Plotter
Interactive Program Debug Feature
Maximum current ratings of 0.6 Arms or 2.6 Arms

Parameter Name	Parameter Value
AC/DC	DC
Motor type	stepper
Other characteristics	programmable 12-48V
Current (A)	0.6 - 2.6
