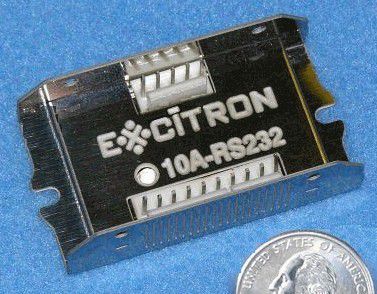

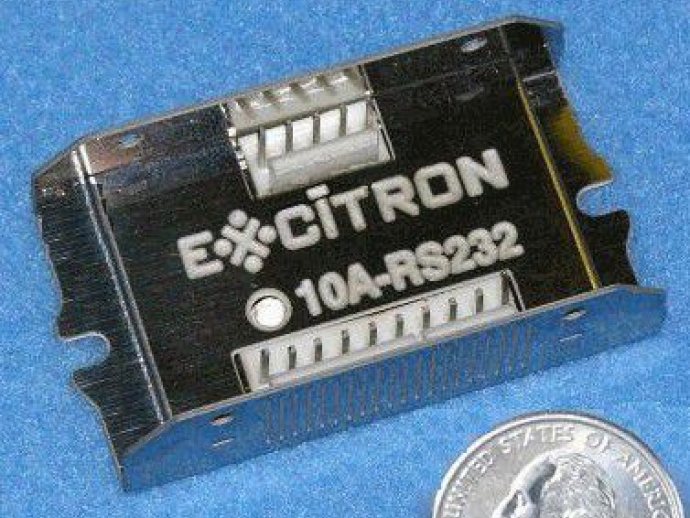

10A-RS232 -- Controller/Driver, 10 amps, w/RS232
Controller/Driver rated 10 amps, with built-in RS232, for unipolar stepper motors

Controller/driver only (without motors) with built-in RS232 serial interface. No other RS232 adaptor needed.
This Controller is replaced by the newer Au Controllers, this Controller is intended only for replacements. Unit comes with a 5 pin header for connecting to a unipolar stepper motor that has a 5 pin Molex or Amp .100" pitch housing. Select this controller to drive unipolar stepper motors that are size 23 (57mm) or smaller. The 10A-RS232 can drive up to 10 amps burst, 3 normally. These controllers are microminiature and exceptionally small.

For Controller drawing and details, see 3.45_Controller_Manual.pdf for DB15 type Controllers, in the Documentation link on home page lower left for and details. This 10A-RS232 has a different pinout than the DB15 Controller, otherwise all commands are the same. These controllers run "right out of the box" by typing a 'w' then 'G'. Each Excitron controller includes all the electronics and drivers for running the stepper motor. There are no separate electronic boxes and no messy cables. Included here is a full range of details of our motor/controller family.

You easily control how your stepper motor operates in these modes:

Serial Command Mode: send and receive via RS232,.Connection with PCs, PLCs or Labview work well.
Standalone Motion Profile Mode: repeatedly run a sequence of motion profiles, exactly as you wish, upon powerup. In this case, your computer is not needed. You can use inputs to control how and when these profiles run.

Parameter Name	Parameter Value
AC/DC	DC
Motor type	stepper
Other characteristics	compact
Input/output	I/O
Current (A)	10 - 10
