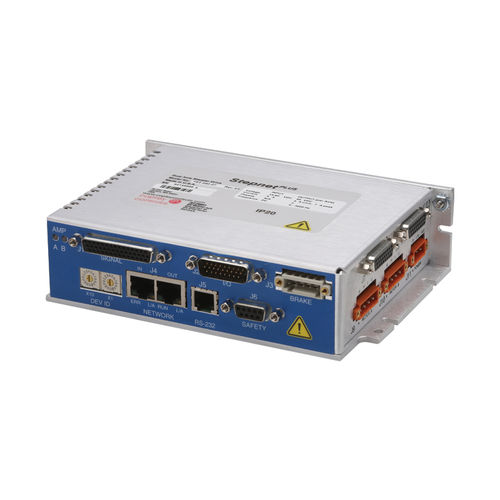

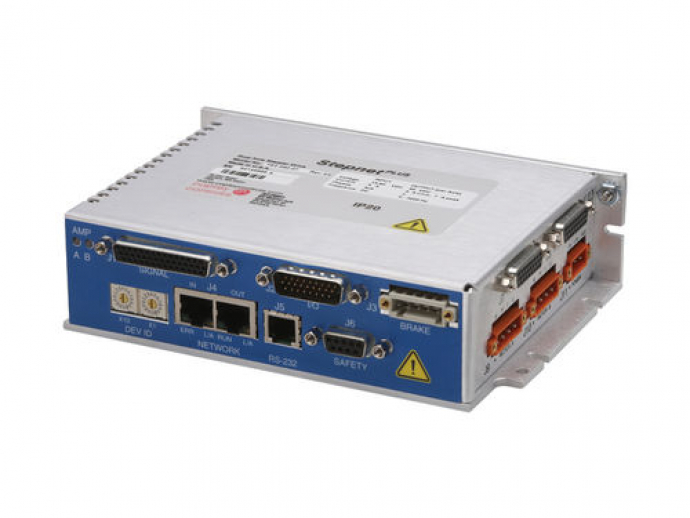

Stepnet TP2 is a dual-axis, high-performance, DC-powered drive for position and velocity control of stepper motors via CANopen. Using advanced FPGA technology, the TP2 provides a significant reduction in the cost per node in multi-axis CANopen systems. Each of the two axes in the TP2 operates as CANopen nodes under DS-402 for motion control devices. Supported modes include: Profile Position-Velocity, Interpolated Position Mode (PVT), and Homing. In microstepping mode, stepper command pulses and a master encoder for camming or gearing are supported. Servo mode allows ±10V analog position/velocity/torque, and PWM velocity/torque control.

Specifications

CONTINUOUS CURRENT
5A

PEAK CURRENT
7A

SUPPLY VOLTAGE
14-90 VDC

DIMENSIONS
172.1 x 119.3 x 50.4 mm

DIGITAL INPUTS
32

DIGITAL OUTPUTS
7

FEEDBACK
BiSS, SSI, Absolute A, Endat, Analog Sin/Cos

COMMAND INTERFACE
Step/Direction, Analog, PWM

ENVIRONMENT
Commercial

CONTROL MODES
• Profile Position-Velocity-Torque, Interpolated Position, Homing
• Camming, Gearing
• Indexer
COMMAND INTERFACE
• CANopen
• ASCII and discrete I/O
• Master encoder (Gearing/Camming)
• Stepper mode position commands:
Digital: Pulse/Dir, CW/CCW, Quad A/B
Analog: ±10V position
• Servo mode commands:
Digital: Pulse/Dir, CW/CCW, Quad A/B
PWM Velocity/Torque command
Analog: ±10V Position/Velocity/Torque
COMMUNICATIONS
• CANopen
• RS-232
FEEDBACK
Incremental Encoders
• Digital quad A/B/X
• Panasonic Incremental A Format
• Aux. quad A/B encoder / encoder out
Absolute Encoders
• EnDat, BiSS, SSI, Absolute A
I/O DIGITAL
• 16 non-isolated, 8 isolated inputs
• 5 isolated outputs, 2 non-isolated outputs

Parameter Name	Parameter Value
AC/DC	DC
Motor type	stepper
Other characteristics	CANopen dual-axis RS-232 torque control
Input/output	digital input, 7 digital outputs
Current (A)	5 - 7
