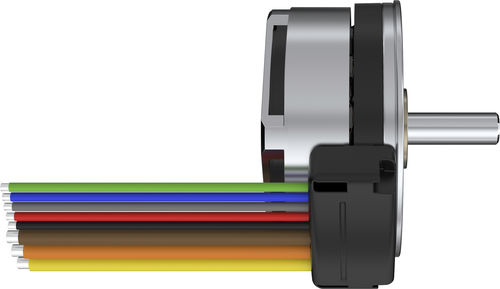

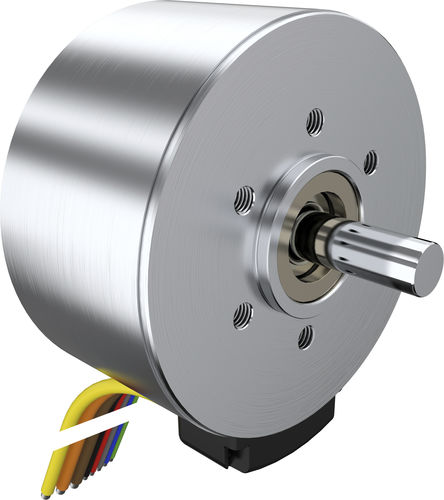

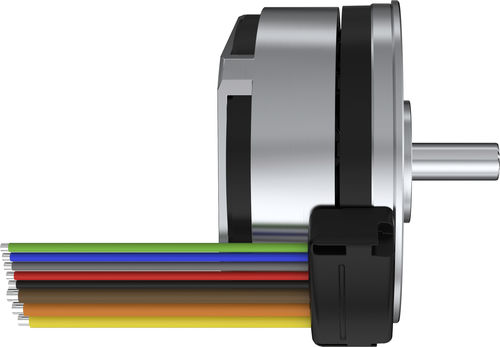

Brushless flat motors with External rotor technology
The external rotor motors of the BXT series set new standards: thanks to innovative winding technology and optimum design, the BXT motors deliver a torque of up to 134 mNm. The ratio of torque to weight and size is unmatched. The iron-core motors with 14 high-performance rare earth magnets on the rotor and 12 teeth on the stator are just 14 mm, 16 mm and 21 mm long, making them suitable for applications that require a short drive solution with high torque. Combined with optical and magnetic encoders, gearheads and controls, the result is a compact drive system.
Advantages
- External rotor motors with very high torque
- Continuous output up to 100 W
- Outstanding ratio of torque to weight and size
- Flat design for space-critical applications. Length range of 14 to 21 mm.
- Matching optical and magnetic encoders, gearheads and controls available
- 14-pole construction
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
DC
|
| Type |
brushless
|
| Configuration |
|
| Number of poles |
multipole
|
| Applications |
with built-in encoder
|
| Other characteristics |
high-torque
|
| Power (W) |
6 - 100
|
| Torque (Nm) |
0.0097 - 0.134
|
| Rotational speed (rpm) |
0 - 10000
|
| Diameter (mm) |
22 - 32
|
| Operating temperature (°C) |
-40 - 100
|
