BO8724N2B

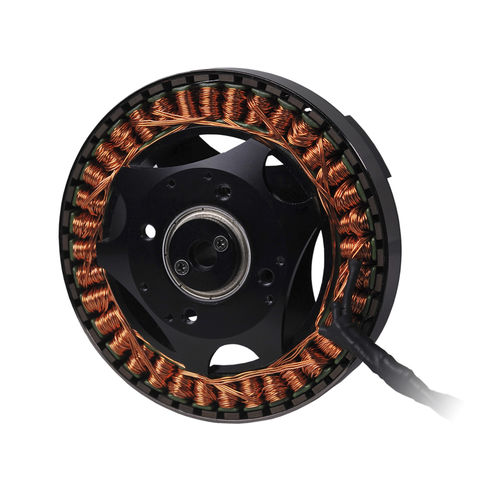

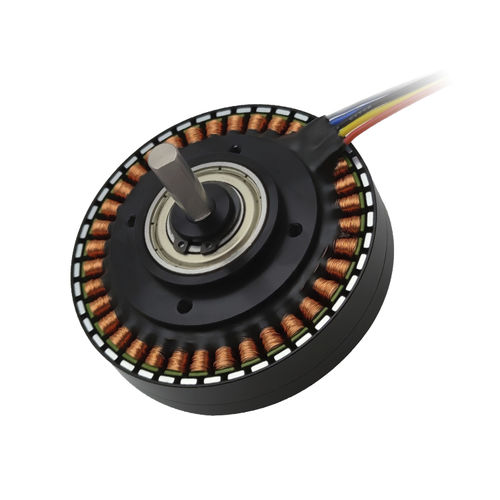

87mm Outer Rotor Brushless DC Motor.Dia:87mm Lengh :24mm Voltage:48V、24V、36V Max. output power :1723W kv100,

87mm Outrunner Brushless DC Motor

Diameter:87mm Lengh :24mm Voltage:48V、24V、36V Max. output power :1723W Speed:3600rpm KV Value 100

Applications
UAV, aeromodelling, etc.

Options
Lead wires length、Shaft length、Special coils、Gearheads、Encoder、Driver

Unit Price
Price upon request



PARAMETERS

Parameter Name Parameter Value
AC/DC
DC
Type
brushless
Voltage (V)
24 - 48
Configuration
external rotor
Applications
  • for industrial applications
  • with built-in encoder
  • for robotics
Other characteristics
integrated-drive
Power (W)
  • 681 - 681
  • 732 - 732
  • 892 - 892
Intensity (A)
9.7 - 13
Torque (Nm)
1.21 - 1.21
Rotational speed (rpm)
3200 - 3200
Diameter (mm)
87 - 87
