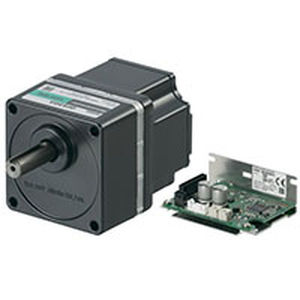

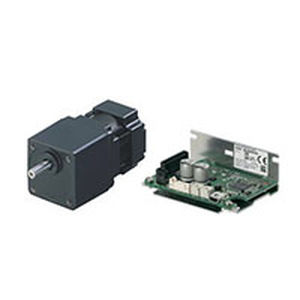

The BLH Series Driver has been updated to now include three driver types; RS-485 Communications type, a Digital type driver or the traditional Analog type. The BLH Series is a 24 VDC, brushless DC motor and driver package offering a wide speed range of 100 to 3000 r/min (80 to 3000 r/min with digital driver type and RS-485 communication type). RS-485 Communication and Digital type driver is used with our MEXE02 support software (available for free download) for improved functions including torque sensing and predictive maintenance monitoring. A wide range of motor options are available to meet you application needs.

• Compact, Board-type Driver (Analog, RS-485 Communication or Digital type)
• Cable or Connector Type Motors
• Speed Control via Potentiometer, DC Voltage or Support Software (Digital type)
• Torque Sensing and Monitoring (RS-485 or Digital type)
• 24 VDC
• Parallel Shaft, Hollow Shaft Flat Gear or Round Shaft (no Gear)
• Electromagnetic Brake Available

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Voltage (V)	24 - 24
Protection class	IP65 IP40
Configuration	permanent magnet with brake hollow-shaft compact flat
Other characteristics	RS-485
Power (W)	15 - 15 30 - 30 50 - 50 100 - 100
Torque (Nm)	0.22 - 68
Rotational speed (rpm)	80 - 3000
Operating temperature (°C)	0 - 50
