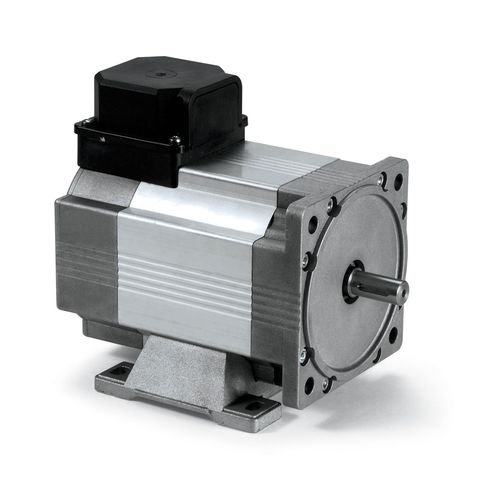

This new line of brushless DC motors are fitted with six poles in NeFeBo magnets, and as the device is without brushes then there is an increased performance consisting of a reduced need for maintenance plus an improved reliability. These units features a high overload capacity in all speed ranges, and a high torque even though it possesses a reduced size.

The unit has low inertia but high acceleration, and a low noise level. The voltage power supply of these motors is between 12 and 280V DC, with a nominal torque of 8.85 to 26.55 lb-in, and a nominal speed of 1500 - 6000 rpm. The position transducer of this device is a hall effect sensor, the power is 180 to 1100 W (1/4 - 1.5 HP), and the section dimensions are 4.68 x 4.68".

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Voltage (V)	12 - 12
Protection class	maintenance-free
Configuration	with built-in electromagnetic brake permanent magnet
Number of poles	6-pole
Other characteristics	integrated-drive high-torque high-power low-noise high-efficiency custom
Power (W)	180 - 180 100 - 100
Rotational speed (rpm)	1500 - 6000
