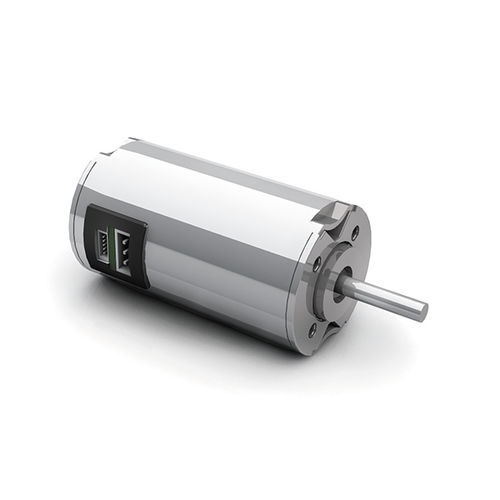

DC motor BG 32x20 dCore

DC motor BG 32x20 dCore

DC motor BG 32x20 dCore

About


» Highly dynamic 3-phase BLDC motor with 8-pole neodymium magnet
» Available in 2 motor lengths
» Version with hall sensors for rotor position detection
» On request, this motor can be manufactured in different voltage versions

Nominal voltage - V:12
Nominal current - A:1.66
Nominal torque - Ncm:2.72
Nominal speed - rpm:4000
Friction torque at no load - Ncm:0.4
Peak stall torque Ncm:10.3
No load speed - rpm:5930
Maximum output power W:16.1
Nominal power - W:11.4
Torque constant - Ncm/A:2.1
Terminal resistance Ohm:1.55
Terminal inductance mH:0.7
Rotor inertia gcm^2:5.9
Weight kg:0.149



PARAMETERS

Parameter Name Parameter Value
AC/DC
DC
Type
brushless
Voltage (V)
24 - 12
Number of poles
8-pole
Power (W)
  • 18 - 18
  • 20.5 - 20.5
Torque (Nm)
0.048 - 0.048
Rotational speed (rpm)
3600 - 3600
