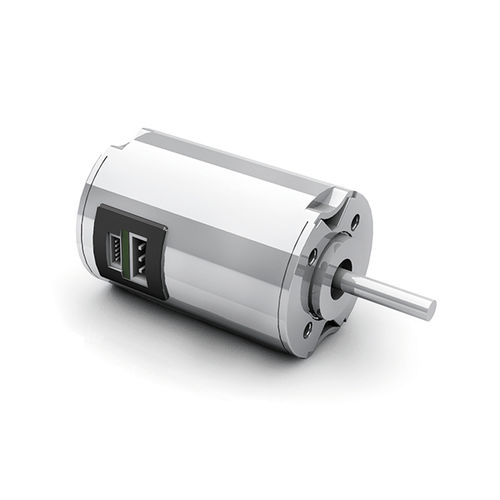

» Highly dynamic 3-phase BLDC motor with 8-pole neodymium magnet
» Available in 2 motor lengths
» Version with hall sensors for rotor position detection
» On request, this motor can be manufactured in different voltage versions

Nominal voltage - V:12
Nominal current - A:1.66
Nominal torque - Ncm:2.72
Nominal speed - rpm:4000
Friction torque at no load Ncm:0.4
Peak stall torque Ncm - :10.3
No load speed - rpm - :5930
Maximum output power W:16.1
Nominal power - W :11.4
Torque constant - Ncm/A : 2.1
Terminal resistance Ohm:1.55
Terminal inductance - mH:0.7
Rotor inertia gcm^2:5.9
Weight kg:0.149

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Voltage (V)	24 - 12
Configuration	modular compact
Number of poles	8-pole
Power (W)	10.7 - 10.7 11.4 - 11.4
Torque (Nm)	0.027 - 0.027
Rotational speed (rpm)	3840 - 3840
