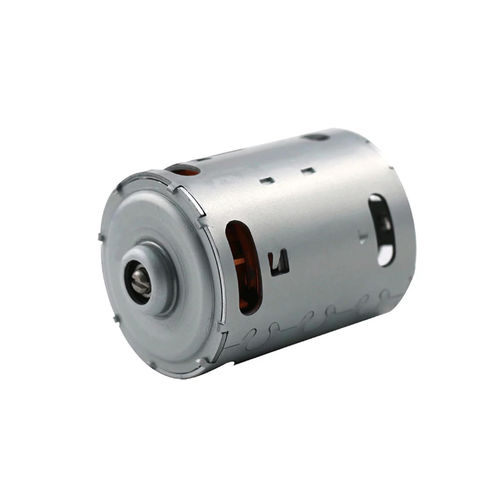

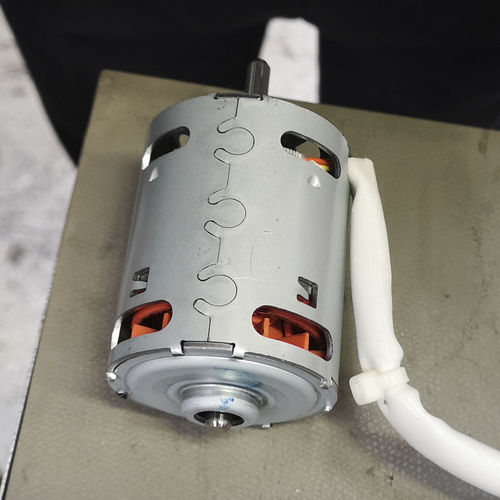

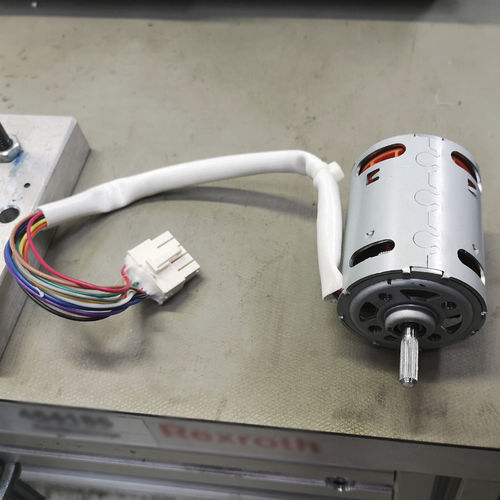

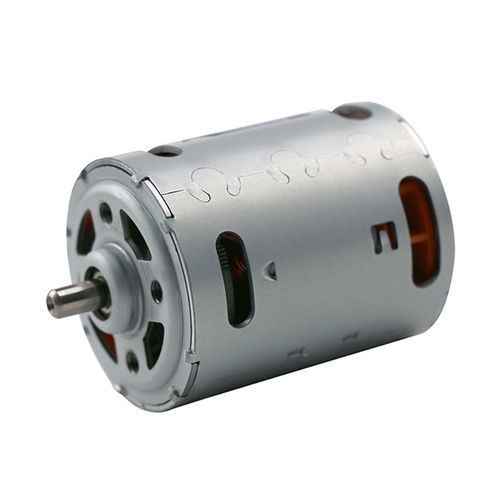

Lawn Mower Cutting DC Motors
52ZWN, 57ZWN

Typical applications: Lawn Mower Robot Drive DC Gear Motors & Cutting DC Motors

Robot Lawn Mower Drive Motor General Technical Specifications:
Motor Type: Brushless / brushed DC gear motor
Operating Voltage: 12 ~ 24V DC
Rated Speed: 20 ~ 70rpm
Rated Torque: 1.0N.m ~ 5.0N.m
Life time: 2000 ~ 5000 hours
Typical Motor Type: 36mm; 42mm diameter long life brushless DC planetary gear motors 36mm; 42mm diameter brushed DC planetary gear motors (optional encoder)

Robot Lawn Mower Cutting Motor General Technical Specifications:
Motor Type: Brushless / brushed DC motor
Operating Voltage: 12 ~ 24V DC
Rated Speed: 3000 ~ 8000rpm
Rated Torque:0.10 ~ 0.5N.m
Output Power: 18W ~ 100W
Life time: 2000 ~ 10000 hours
Typical Motor Type: 42mm square brushless DC motor; 52mm, 57mm diameter brushless DC motor

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Voltage (V)	18 - 18
Protection class	maintenance-free
Applications	for robotics agricultural for battery-powered systems for lawn-mowers for robotic lawnmower
Other characteristics	custom
Power (W)	18 - 100
Torque (Nm)	0.11 - 0.11
Rotational speed (rpm)	5300 - 5300
Diameter (mm)	51 - 52
