Characteristics
Motor type : Brush commutated permanent magnet DC motor
Optional gearbox type : Planetary/Spur/Worm/Right Angle
Diameter : 42mm
Length : 85mm
Nominal voltage : 12V/24V DC or customized
No load current : 0.20A; 0.30A
No load speed : 3000rpm; 3600rpm
Norminal current : 1.20A; 1.50A
Nominal speed : 2400rpm; 2850rpm
Nominal torque : 70mN.m; 80mN.m;
Nominal power : 15W; 23W
IP rating : up to IP68

Description

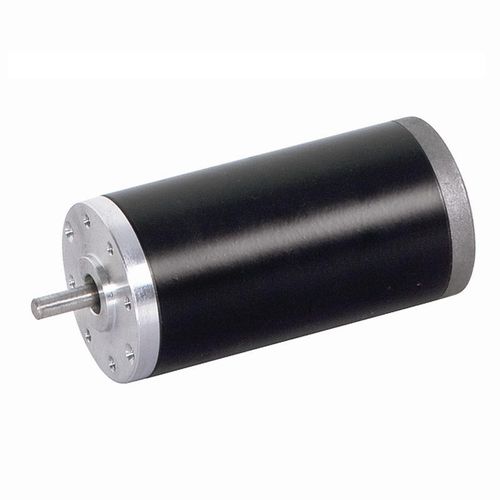

Compact design brushed DC motor
The 42ZY85 model of brushed DC motor can be equipped with Planetary/Spur/Worm/Right Angle gearbox

Options
Planetary/Spur/Worm/Right Angle gearbox
Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning.
Power-on or power-off type electromagnetic brake
Capacitor& resistor for EMC suppression
Special shaft material and dimensions
Custom design; OEM products available

Features
Magnetic field generated by permanent magnets
Operation in both directions of rotation(CW & CCW)
Speeds up to 10,000 RPM possible
Advantageous torque with minimum space requirements
Suitable for continuous, reversing and intermittent operation
Can be installed in any mounting position

Typical applications
Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc.
Household electrical appliances:lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc.,
The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.

Parameter Name	Parameter Value
AC/DC	DC
Type	brushed
Voltage (V)	24 - 12
Protection class	IP68
Configuration	permanent magnet compact
Applications	industrial for medical equipment with built-in encoder for household appliances for the automotive industry
Other characteristics	custom with gearbox reversible
Power (W)	15 - 15 23 - 23
Intensity (A)	1.2 - 1.5
Torque (Nm)	0.07 - 0.07 0.08 - 0.08
Rotational speed (rpm)	2400 - 2400
Diameter (mm)	42 - 42
