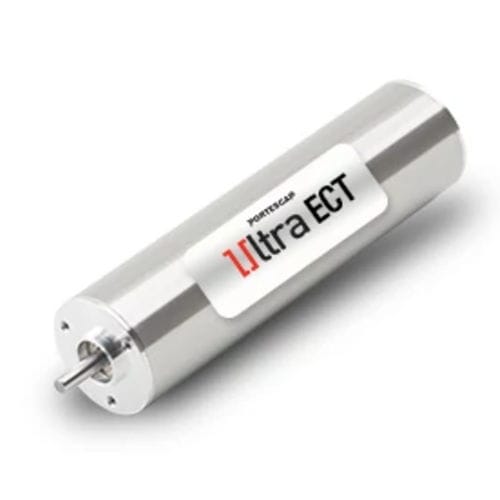

The 22ECT Ultra EC is designed specifically to deliver ultra high torque in a compact size. The 22ECT is specifically optimized for high continuous torque at low to medium speeds, maximizing power between 10 K and 20 K rpm. These small dc motors are capable of delivering 2 times higher continuous torque than comparable BLDC motors of same size over the entire low speed range when used with gears.

Product Highlights
• Small package, 2 standard lengths available
• Proprietary high efficiency coil design
• Access similar or higher torques than DC motors with much higher lifetimes
• Best in class torque capability for BLDC motors in this size, using 4 poles design

Customization Available
• Coil modifications - resistance and inductance
• Connectors
• Custom shafts - flats, knurling, diameter, length
• Embedded temperature sensor

Applications
• Power Hand Tools
• Humanoid Robot
• Material Handling
• Seat Actuation
• Surgical Robots

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Voltage (V)	24 - 24
Configuration	aluminum slotless stainless steel compact small mini
Number of poles	4-pole
Applications	for medical equipment for robotics for power tools
Other characteristics	custom high-efficiency high-torque low-speed
Power (W)	104 - 104
Intensity (A)	3.2 - 5.3
Torque (Nm)	0.0983 - 0.0983 0.0984 - 0.0984 0.0988 - 0.0988
Rotational speed (rpm)	20000 - 20000
Diameter (mm)	22 - 22
Operating temperature (°C)	-30 - 100
