Description

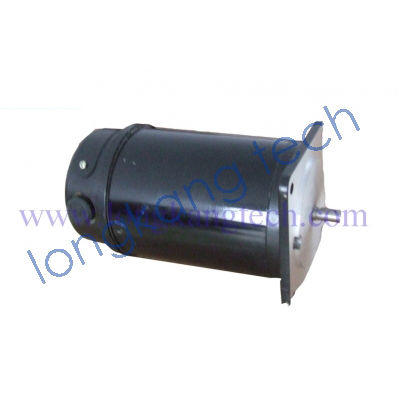

Series ZYT PM DC Motor is used with Ferrite PM magnet, closure and self-cooling. It is used as driving element in any System.

Mounting Method:
Foot Mounting/ flange mounting/ housing mounting
Frame no: 50—130mm

Environment requirement:
1 no more than 4000m above sea level
2 ambient température: -25-40°C
3 relative humidity s95%(at 25°C)

Parameter Name	Parameter Value
AC/DC	DC
Type	synchronous
Voltage (V)	220 - 110
Configuration	permanent magnet
Cooling mechanism	self-ventilated
Power (W)	400 - 400
Intensity (A)	2.4 - 13
Torque (Nm)	2.548 - 2.548 3.185 - 3.185 3.822 - 3.822
Rotational speed (rpm)	1500 - 1500
Diameter (mm)	130 - 130
Operating temperature (°C)	-25 - 40
