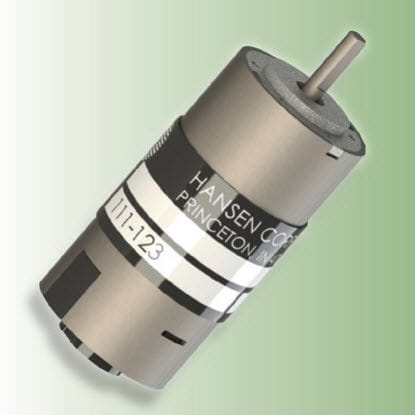

The new series 111-2 permanent magnet, 30mm diameter DC brush motors has been introduced to serve the industrial, instrumentation and automotive markets in either open-loop or close-loop applications.

Standard catalog stall torque ratings range up to 19 oz-in while no-load speed ranges from 3,200 to 6,200 rpm. Encoders with line counts up to 2048, are available to provide velocity and position feedback information. Reliability is further enhanced by longlife, pre-loaded ball bearings. Special windings and special shaft and mounting configurations are available to meet the requirments of OEM custom applications.

Parameter Name	Parameter Value
AC/DC	DC
Type	synchronous
Voltage (V)	24 - 12
Configuration	permanent magnet
Applications	industrial
Rotational speed (rpm)	3200 - 6200
