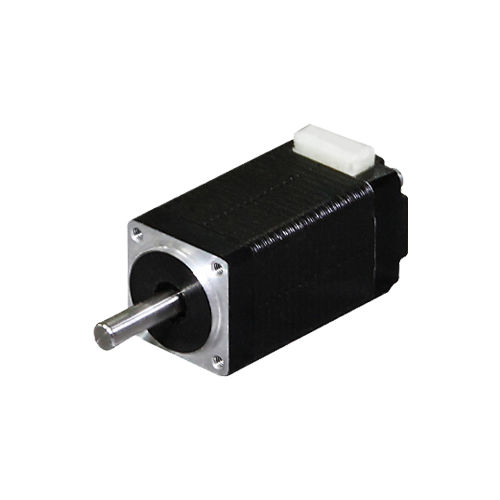

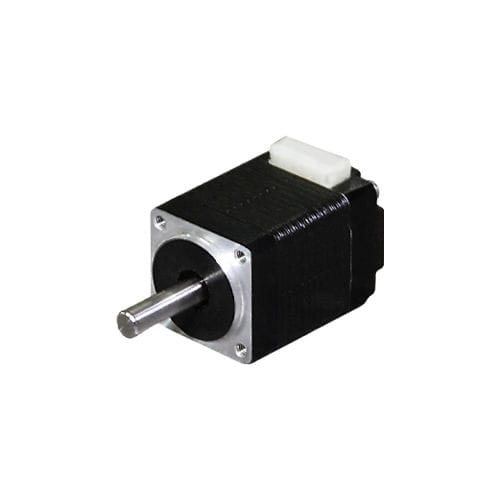

The size 8 [20mm] Hybrid Rotary Stepper Motor has Max. 0.02Nm of holding torque.

Encoders and 22mm frame planetary gearbox solutions are available.

For special windings or customization, Please contact DINGS' for further information

Material
End bell : Aluminum alloy
Bearing : Deep groove ball bearing
Magnet : Sintered NdFeB
Shaft : Stainless steel
Wiring : UL 3265, 28 AWG

Parameter Name	Parameter Value
AC/DC	DC
Type	hybrid stepper
Voltage (V)	24 - 24
Configuration	aluminum
Applications	with built-in encoder
Other characteristics	with gearbox
Intensity (A)	0.5 - 0.5
Torque (Nm)	0.012 - 0.012 0.02 - 0.02
Rotational speed (rpm)	0 - 2100
Diameter (mm)	20 - 20
