Every electric motor generates a voltage when switched off, which depends on the residual magnetism in the motor and its rotational speed at that point in time.
This induced generator voltage is related to the rate of change of speed of the magnetic field surrounding the stator and rotor windings and to the actual number of turns on the coils.

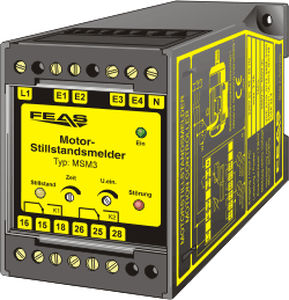

This induced voltage, which can originate from a 3-phase, AC or DC motor, is analysed by the standstill monitor. That is, the deceleration generator voltage of an electric motor is monitored to indicate, for example, that the motor is stationary. This analysis can be performed continuously or with a delay. In order to achieve this, the voltage level is measured using an analogue input circuit with adjustable differential amplifier. The indicators and monitor relays are then activated by means of a digital analysis logic, depending on the user's settings.

Standstill recognition without tacho alternator
Suitable for the most AC and DC motors
Continuous monitoring by running motor
High input sensitivity
Digital analysis logic
Utilizable as voltage detector
Max. input DC voltage: 600 volts
Max. input AC voltage 550 volts
Suitable for the tropics
Safety acc. to VDE, EN, UL, CSA

Parameter Name	Parameter Value
Motor type	DC AC
Product applications	motor
