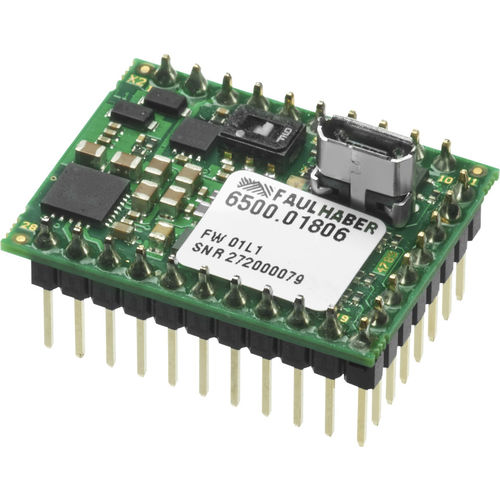

Motion Controllers
Series MC 3001 P
V3.0, 4-Quadrant PWM
with RS232 or CANopen interface

Supply voltage: - 6 ... 30 V DC
Max. continuous output current: - 1,4 A
Peak current: - 5 A

Series MC 3001 P Variant
Product:MC 3001 P RS/CO
UB min. (V DC):6
UB max. (V DC):30
Icont (A):1.4
Ipeak(A):5

Interfaces
Configuration from Motion Manager 6.7 Fieldbus
MC 3001 P
Up : 6 ... 30
Umot : 6 ... 30
fpWM : 100
V : 95

Basic features
■ Control of brushless, DC- and linear motors
■ Supported sensor Systems: absolute encoders, incrémental encoders (optical or magnetic), Hall sensors (digital or analog), tachometers
■ Positioning resolution when using absolute encoders as position encoder: 4096 steps per revolution
■ 3 digital inputs, 2 digital outputs, 2 analog inputs, flexible configuration
■ Setpoint spécification via fieldbus, quadrature signal, puise and direction or analog inputs
■ Optional stand-alone operation via application programs in ail interface versions

Parameter Name	Parameter Value
Motor type	DC linear
Signal type	digital CANopen analog for fieldbus RS-232
Technology	integrated circuit
Product applications	positioning
