About

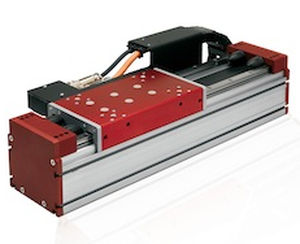

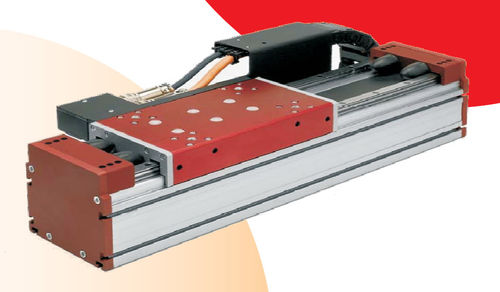

SKA Compact combines the performance of direct-drive technology with easy assembly in a complete, plug-and-play system, housed in an extruded aluminium body. This iron-core synchronous linear servomotor has a high force density, making it ideal for applications that need high reversal frequencies and positioning capacities. The advantages: the total elimination of backlash and mechanical elasticity typical of conventional systems, and a lower energy consumption thanks to the higher overall efficiency. Its versatility allows a wide range of mounting configurations, even in combined axis.
Feature
58 – 1600N continuous force
5m/s speed
50m/s² acceleration
0,01 – 0,1mm accuracy
All mechanical components are completely sealed off for a high degree of protection
NdFeB Magnets
Feedback: SinCos encoder, TTL optical and magnetic encoder, Hall Sensors
CE certified
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Voltage (V) |
60 - 60
|
| Speed (mm/s) |
0 - 5000
|
| Force (N) |
58 - 1600
|
| Power (W) |
|
