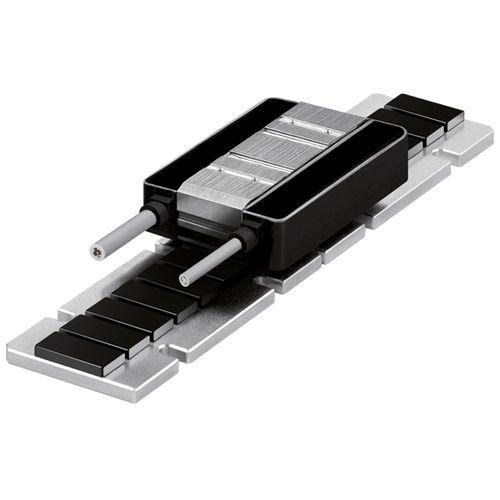

The LMG linear motors are small size motors optimized for high dynamic applications. The LMG motors provide a high peak-to-continuous force ratio. With low weight and high peak force capabilities, the LMG motors are perfectly suited for high-end linear axis with mid- to-low moving masses and requesting high accelerations. In addition, the ETEL patented designs provides a very compact form factor and lowest possible force ripple for smooth motion.

Characteristics :
- 14 standard models available
- Designed for high peak force
- Compact design
- Economic
- Free air cooling
- Low force ripple
- 600 VDC compliant

Main specifications :
- Continuous force up to 689 N
- Peak force up to 3'630 N
- Speed up to 15 m/s

Parameter Name	Parameter Value
Type	DC iron-core
Voltage (V)	48 - 48
Other characteristics	compact small
Speed (mm/s)	15000 - 15000
Force (N)	66.6 - 3630
Stroke (mm)	95 - 335
