The state of the art LinX® Linear motor has significant benefits over other traditional motors with ground-breaking technology and design.

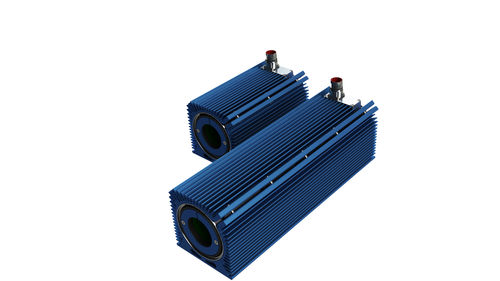

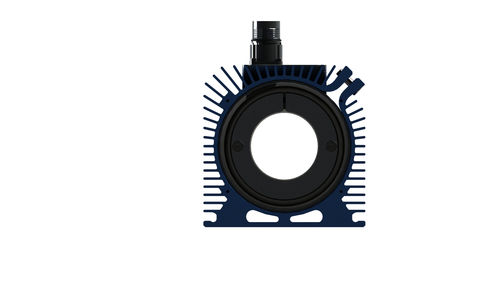

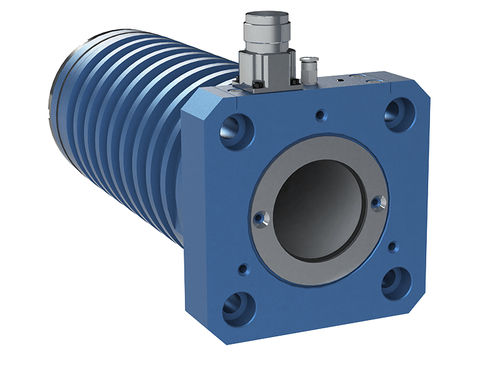

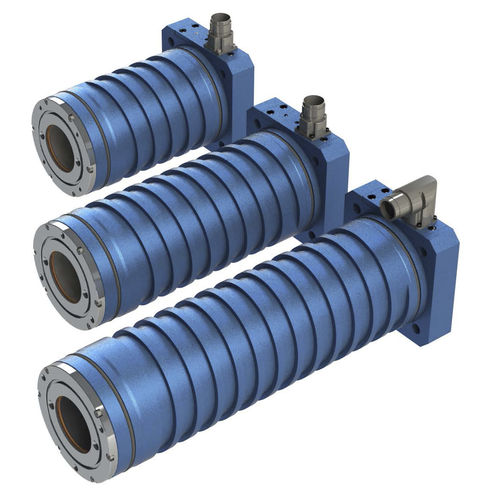

ANCA Motion’s tubular LinX® Linear Motors consist of a shaft containing magnets and a forcer containing wound copper coils. The symmetric design results in zero attractive forces between the forcer and shaft, greatly reducing the loading requirement on support bearings. With LinX® Linear Motors simple construction, non-critical air gap and no physical contact between shaft and forcer, machine manufacturers can greatly simplify installation, reduce maintenance and extend machine life. The LinX® Linear Motors range is designed to allow easy replacement of ball screws and pneumatic cylinders in existing machine designs.

At a glance, the LinX® Linear Motors offer:

- Efficient linear motion
- Wide force and stroke range
- Low motor cogging
- No wear
- Zero down force
- Low installation and maintenance costs
- IP67 level protection (IP69K optional)
- Ideal for ball screws and pneumatic replacement

Parameter Name	Parameter Value
Type	DC
Other characteristics	IP69K IP67 tubular high-speed high-performance
Force (N)	335 - 4272
