An IoT ready HD touch screen flow rate indicator and totalizer

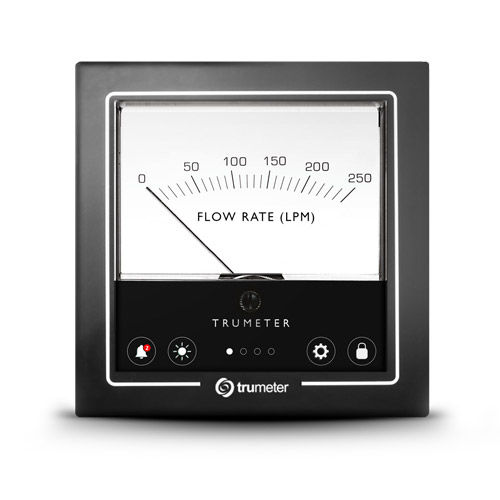

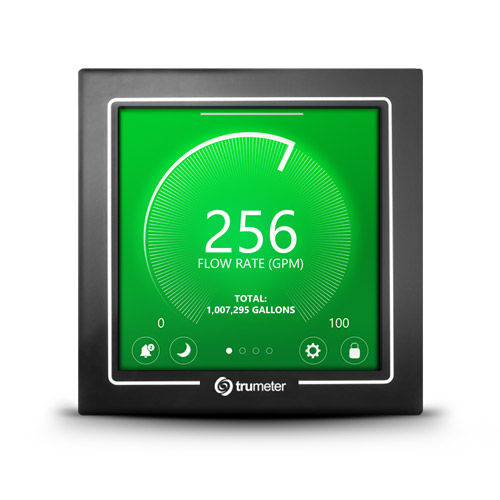

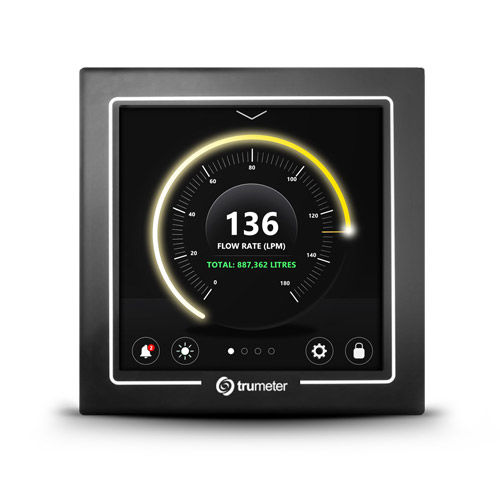

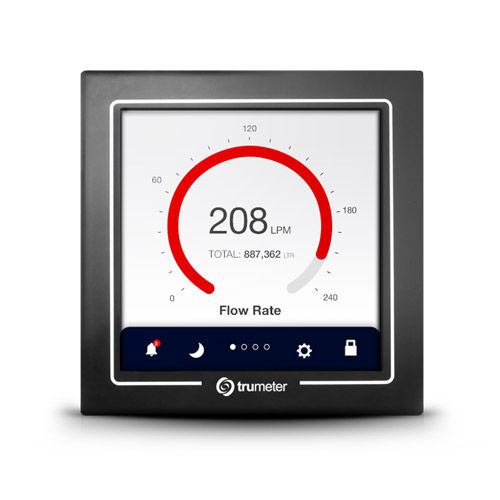

A revolutionary panel meter, the Vista Touch has been designed for use with a wide range of industrial flow sensors, making it ideal for a range of applications. The fully graphical display with touchscreen interface offers full configurability with multiple, vibrant pre-loaded gauge options.
The Vista Touch has proven industry communication protocols such as Modbus RTU(RS485) and TCP/IP(Ethernet).
Unlock your system’s potential with the Trumeter Cloud platform, offering built-in remote monitoring right out of the box!
Go to Trumeter Cloud Pricing Plans to see the full range of options and features.
Free subscription to Trumeter Cloud Dashboard
0.1% accuracy across the input range
Bright, full color 70mm x 70mm [2.76" x 2.76 graphics display
Load and save configuration data to a USB flash drive
Industry standard ¼ DIN mounting
Specifications
PSU -
100-277V AC & 50-60Hz, 12 – 24V AC/DC
Input -
-10V to +10V DC, -50mA to +50mA, Logic 0 = 0 to 0.6V DC, Logic 1 = 2.5V to 24V DC, Pulse / Rate

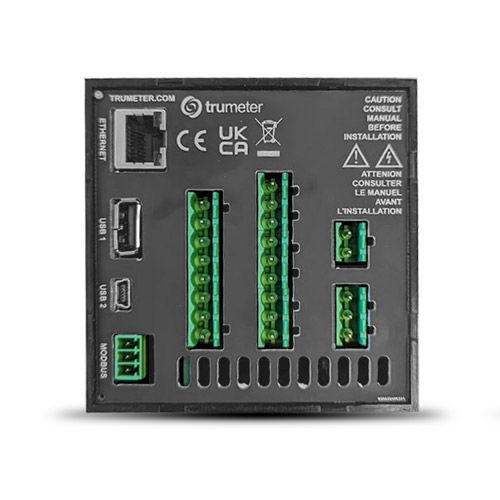

Communication -
RS485 – Modbus RTU
Ethernet – Modbus TCP
Platform – Trumeter IoT Cloud
USB – Mass storage (USB flash drive)
Certifications -
CE, ROHS, UKCA, UL pending
Dimensions -
3.94in x 3.94in x 3.52in | 100mm x 100mm x 89.3mm
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured value |
DC, AC, flow, load, rate
|
| Display |
with touch screen
|
| Type |
panel
|
| Other characteristics |
|
