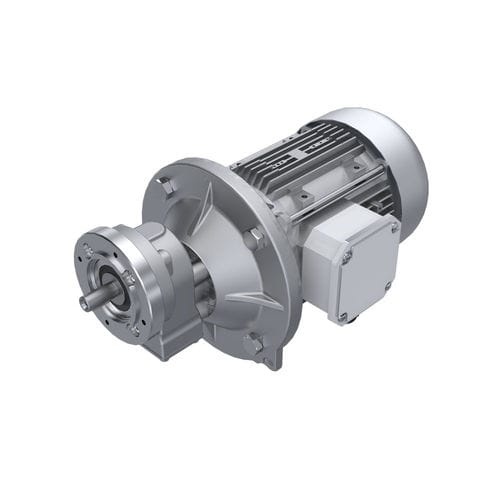

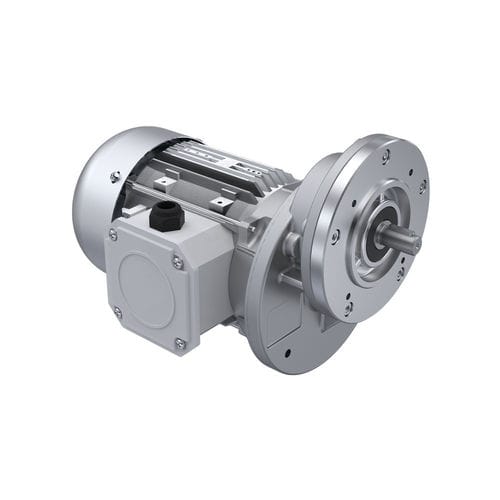

Developed for feeding systems of poultry farms, PX/PPC series are preferred thanks to their silent and trouble-free operations and lightweight structures.

Single-stage helical gear units with parallel axis input and output.
A rigid structure in case.
May be shaft-fitted.
System resistance calculations are made in accordance with ISO, DIN and NIEMANN standards.
Gear units have PAM input options.
Cases are manufactured from ADC-12 aluminum injections.
Different flange measurements may be provided in B5 mountings.
Gears are made of cast and 21NiCrMo2 case-hardening steel.
High-quality bearing and sealing components are used.
Special requests of the customers may be considered.

Parameter Name	Parameter Value
Motor type	DC
Type	helical
Shaft orientation	coaxial
Power (W)	500 - 1000 1000 - 2000
Torque (Nm)	20 - 50 10 - 20
Certifications	ISO
Other characteristics	single-stage
