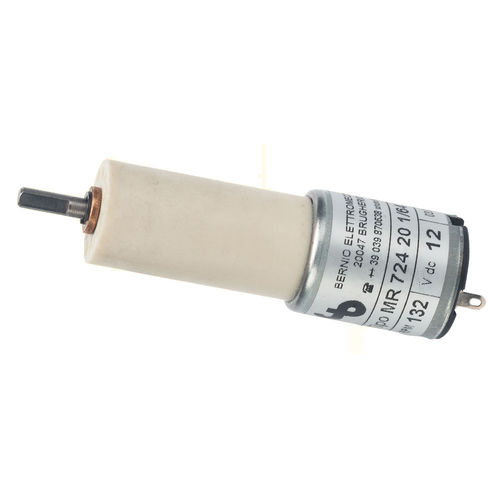

Length "L" of the gearmotor as a function of reduction and output number of revolution with the standard motor 724,
output 5 W, 12000 Rpm loadness, 12 or 24 Vdc. Starting corrent 1,6 A

Output shaft supported by self lubrifilating bushines.
The motor is plated for corrosion strength. The reductor body is Delrin made.

* The rotation speed can change of ±10%.

The test was made using a (0,85 A) current with a timing 3' ON 6' OFF.
The starting corrent is (I max) and cannot be maintained for more than 2''.

Max. forces which may on the output shaft: Axial 30 N, Radial 10 N on the extremity of output shaft.

Parameter Name	Parameter Value
Motor type	DC
Type	planetary
Shaft orientation	coaxial
Power (W)	0 - 10
Voltage (V)	12 - 24
Torque (Nm)	0.1 - 0.2 0.2 - 0.5 0.5 - 1 1 - 5
Product applications	industrial
Other characteristics	compact
