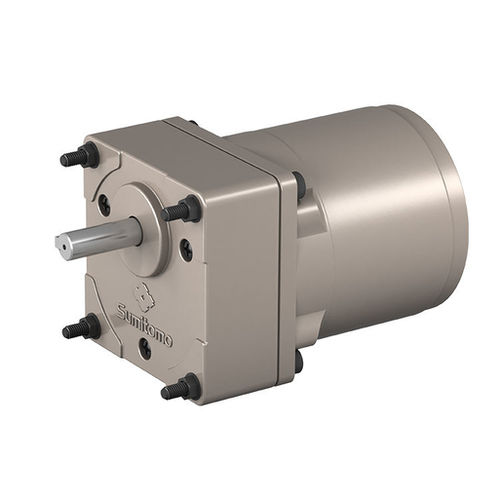

Compact gearmotor with parallel or right angle shaft configuration.
Overview
Choose either parallel or right angle shaft.
Technical Info
Output Shaft - Hollow shaft, Solid shaft
Output Shaft Direction(s) - Any Mounting Direction
Mounting Style - Shaft Mount, Flange Mount
Frame Size -
Parallel Shaft, 5 Sizes

Right Angle Shaft, 3 Sizes

Reduction ratio -
Parallel Shaft, 3:1 - 200:1

Right Angle Shaft, 5:1 - 240:1
(10:1 ratio intermediate gearhead can be added)

Motor Types - Three phase, single phase, single phase speed control, compatible with global standards
Product Features
Detachable Gear Heads
The motor and gear head have a modular design, allowing them to come apart for easier handling.

Compatible Joints
The gear heads have the same main mating dimensions (corner dimensions / output shaft location and dimensions / mounting holes) for both parallel and right angle shafts.

High Quality Finish
The hardened finish ensures high durability and reliability.

Versatile Options
A variety of options are available, including gearheads, inverters, and speed controllers.

High Torque and Low Noise Right Angle Shaft Type
The right angle shaft type uses hypoid gears for high efficiency, high torque, and low noise. Almost all hollow shaft type models have no torque limit, allowing you to leverage full motor power.

Easy to Use Right Angle Shaft Type

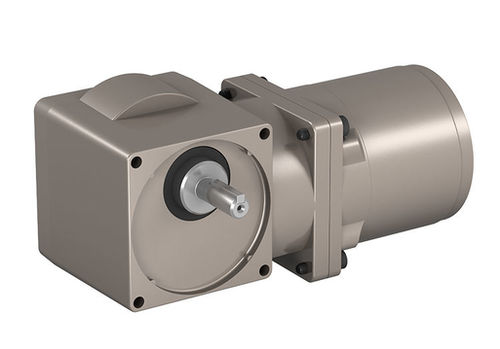

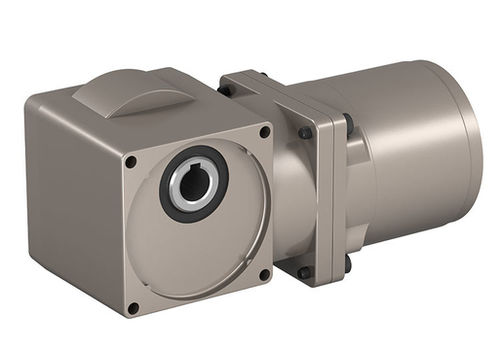

Two types available - solid shaft and hollow shaft. The solid shaft / flange mount type has left and right output shaft directions, which allows you to install without changing the design of your machine.

Parameter Name	Parameter Value
Motor type	DC
Type	hypoid
Shaft orientation	right angle
Power (W)	10 - 50 50 - 100 0 - 10
Torque (Nm)	5 - 10 10 - 20 0.1 - 0.2 0.5 - 1 0 - 0.1 0.2 - 0.5 100 - 200 50 - 100
Other characteristics	compact efficiency modular
