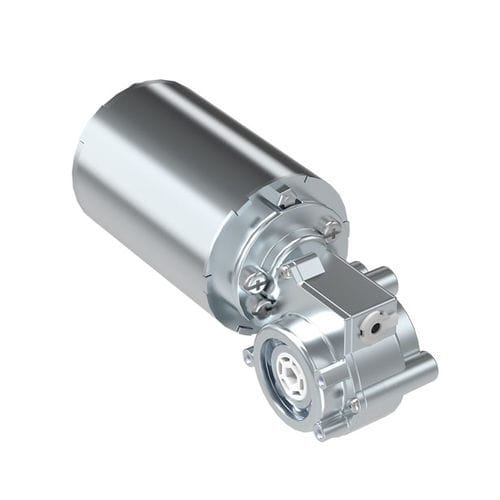

TiMOTION’s TGM1 series gear motor was designed primarily for ergonomic applications like height adjustable workstations and tables, but can be used in many other applications. This economical product allows for fast, smooth and quiet adjustment of built-in spindles through the use of external limit switches. Shafting allows for the mechanical synchronization of dual spindles.

• Max. speed at max. load: 72RPM (±5%)

• Max. speed at no load: 262.5RPM (±5%)

• Certificate: UL962

• Output signals: Hall sensors

• Hexagon hole for the shaft by 6 or 9.1mm diameter

Parameter Name	Parameter Value
Motor type	DC
Type	gear train
Shaft orientation	right angle
Voltage (V)	24 - 12
Torque (Nm)	5 - 10
Product applications	for lifting applications
Other characteristics	low-noise
Operating temperature (°C)	5 - 45
