MOTOR: direct current with permanent magnets, totally enclosed motor without external ventilation. Class F winding. 24 Vdc power supply. Max. input power 230 W. IP65 protection according to CEI EN 60529.

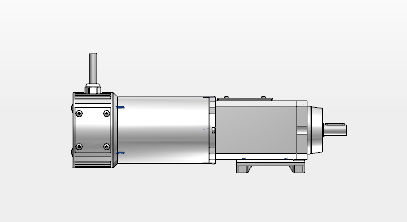

GEAR UNIT: with casing in die-cast aluminium. Case-hardened and hardened gear pairs with shafts rotating on roller bearings. Lubrication with long life oil. Sealing rings made in special rubber for high temperatures. 14 gear ratios (i) available, from 6.48 to 372.8. Rated torque 20 Nm. Version B3 or B5.

Parameter Name	Parameter Value
Motor type	DC
Type	helical
Shaft orientation	coaxial
Power (W)	100 - 500 50 - 100
Voltage (V)	24 - 12
Torque (Nm)	10 - 20
Other characteristics	permanent magnet aluminum frame
Gear ratio (unit)	6.48 - 372.8
