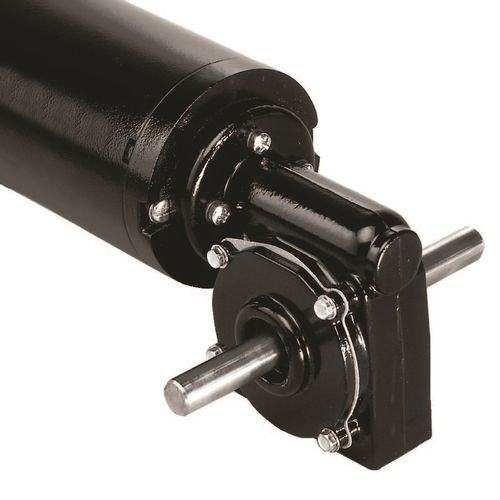

RAE's oil filled G16 right angle gear train gives you more torque for the buck and brings increased capacity in a compact design. With a continuous duty torque of up to 95 inch pounds, this worm driven gear train can sustain torques higher than most other gear trains of the same size. If your design requires higher capacity in a reduced space, or if your present gear motor is failing prematurely test the oil filled G16. It just may be the answer you have been looking for.

Right Angle DC Gear Drives with Higher Torques
Provides up to 95 inch pounds of continuous torque at the output shaft.
■ Precision machined worm gear set with an oil-filled gearcase puts muscle in your continuous torque applications.
■ Compact design saves space and weight.
■ Output speeds from 30 to 350 RPM.
■ G16 gearmotors. They are all about driving down your costs.

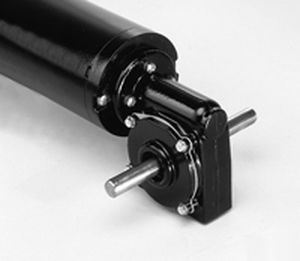

The oil filled G16 right angle gear train gives you more torque for the buck and brings increased capacity in a compact design. With a continuous duty torque of up to 95 inch pounds, this worm driven gear train can sustain torques higher than most other gear trains of the same size. If your design requires higher capacity in a reduced space, or if your present gearmotor is failing prematurely, test the oil filled G16. It just may be the answer you have been looking for.

Features
■ Grease or Oil Lubrication
■ Ball Bearings (Gearbox)
■ High Energy Ceramic Magnets
■ Double Shielded Ball Bearings (Motor)
■ Dynamically Balanced Armature
■ Reversible Design
■ TENV Enclosure
■ Externally Replaceable Brushes
■ Auto-Hook Tang Type Commutator
■ Value Added Options and Modifications Available

Parameter Name	Parameter Value
Motor type	DC
Type	worm gear train
Shaft orientation	right angle
Shaft configuration	dual-shaft
Torque (Nm)	1 - 5 5 - 10 10 - 20 0.5 - 1 0.2 - 0.5 0.1 - 0.2 0 - 0.1
Performance	high-torque
Other characteristics	compact precision
Gear ratio (unit)	10 - 50
