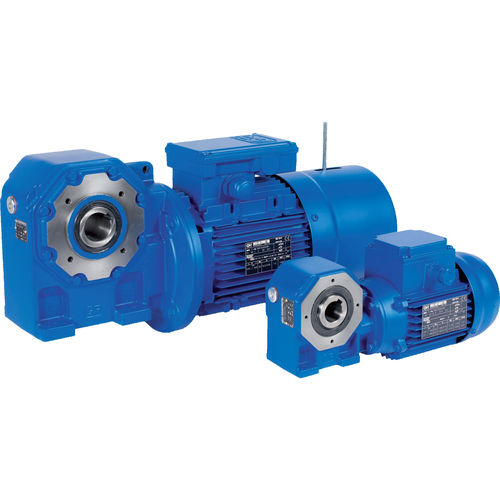

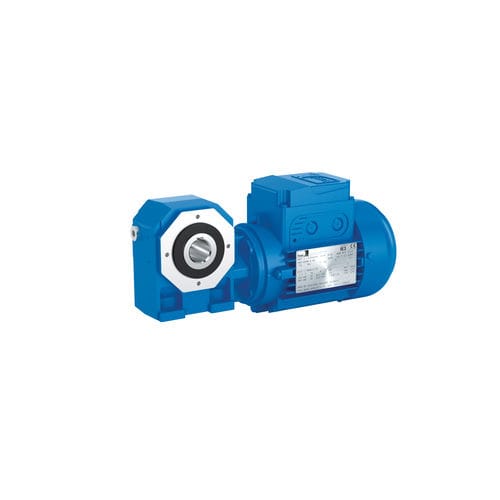

Gearmotors with high interchangeability (hollow low speed shaft diameters). Universal mounting with lower feet, integral with housing, and B14 flange on 2 faces. Basic design; compactness and economy. IEC standardized motor.

High, reliable and tested performances (Ni bronze); optimization of worm gear pair performances (ZI involute profile and adequately conjugate worm wheel profile)

Rigid and precise cast iron single-piece housing with motor mounting integral flange. Generous internal space between train of gears and housing.

FEATURE

Mounting with lower integral feet and B14 flanges on 2 faces integral on the housing
Rigid and precise cast iron monobloc body
Worm wheels made of nickel bronze with controlled phosphor contentto achieve improved performance, a higher load capacity, greater reliability and wear resistance
Generous internal space between train of gears and housing
Tapered roller bearings on worm shaft
Motor mounting flange integral to the housing

BENEFITS

Longer life and lower power consumption
Interchangeability with major manufacturers
High performance and greater reliability
Smooth and quiet running

Parameter Name	Parameter Value
Motor type	DC
Type	worm
Shaft orientation	right angle
Power (W)	100 - 500 500 - 1000 1000 - 2000 2000 - 5000 5000 - 10000
Torque (Nm)	1 - 5 20 - 50 5 - 10 50 - 100 100 - 200 10 - 20 0.5 - 1 0.2 - 0.5 0.1 - 0.2 200 - 500
Product applications	for conveyors flange
Other characteristics	modular
