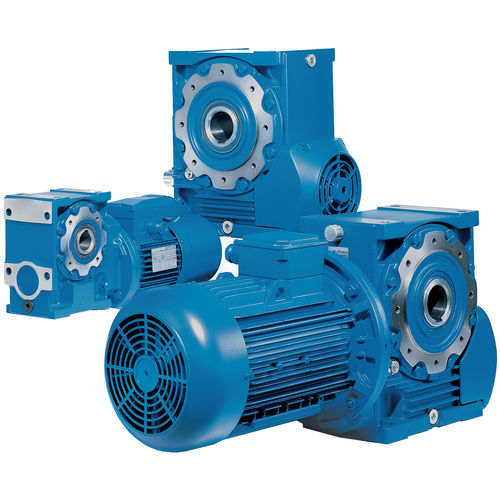

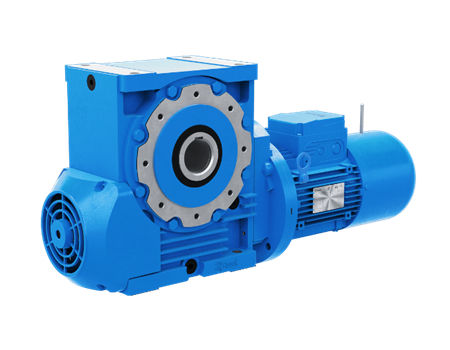

Universal mounting with feet integrated with the body. High, reliable and tested performances. Compactness, standardized dimensions and compliance with standards. Standardized motor according to IEC. Solid and seamless cast iron one-piece body. Large internal space between gear train and body. Possibility to install particularly powerful motors and transmit high nominal and maximum torques.

FEATURE

Universal mounting with lower feet integral on the housing and B14 flanges
Rigid and precise cast iron monobloc housing
Forced ventilation for an easy thermal power dissipation (size > and = 100)
Worm wheels made of nickel bronze with controlled phosphor contentto achieve improved performance, a higher load capacity, greater reliability and wear resistance

BENEFITS

Longer life and lower power consumption
Easy and functional shaft mounting
High performance and greater reliability
Smooth and precise running, reduced and constant backlash
Constant performance in heavy duty applications

Parameter Name	Parameter Value
Motor type	DC
Type	worm
Shaft orientation	right angle
Power (W)	100 - 500 500 - 1000 1000 - 2000 2000 - 5000 5000 - 10000 10000 - 20000 20000 - 50000 50000 - 100000
Torque (Nm)	1 - 5 20 - 50 5 - 10 500 - 1000 1000 - 2000 2000 - 5000 50 - 100 10000 - 10000 5000 - 10000 100 - 200 10 - 20 0.5 - 1 0.2 - 0.5 0.1 - 0.2 200 - 500 0 - 0.1
Product applications	for conveyors wheel
Other characteristics	hollow-shaft shaft-mounted
