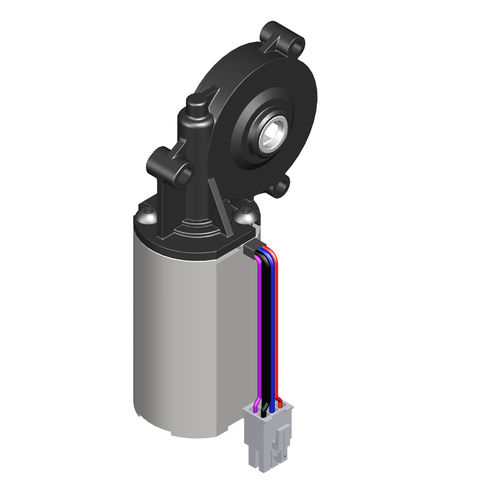

Motor drive 3133.48
Compact 24 V DC motor with worm gear and through going hexagon
socket. Although the drive was developed for ergonomic table applications, it can be used in many other fi elds. A cable with AMP plug and an integrated Hall sensor allows easy and secure control of the entire system.
Special features
Two integrated Hall sensors for measurement of the revolutions and direction of rotation
Through going hexagon socket in wrench widths 6 mm and 9 mm
High torque with minimum construction size
Good self-locking properties
Low noise
100 mm motor cable with connector included
Can be combined with all Ketterer spindle systems
Variant key
The variants are formed by the diff erent wrench widths.
Technical notes
The drive working range (nominal torque) is determined for a service life of 10,000 double strokes.
Through the controller* the system is regulated such that the speed in the entire work area position of the drive is kept as constant as possible.
By using a controller with a short-circuit brake the holding torque position of the drive can be increased.
* In combination with LogicData control box Compact-3
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Motor type |
DC
|
| Type |
worm
|
| Shaft orientation |
right angle
|
