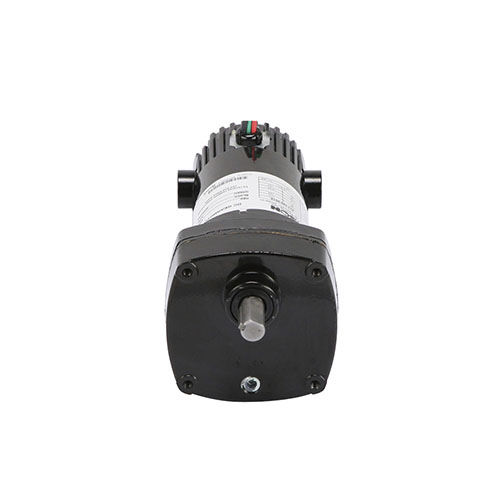

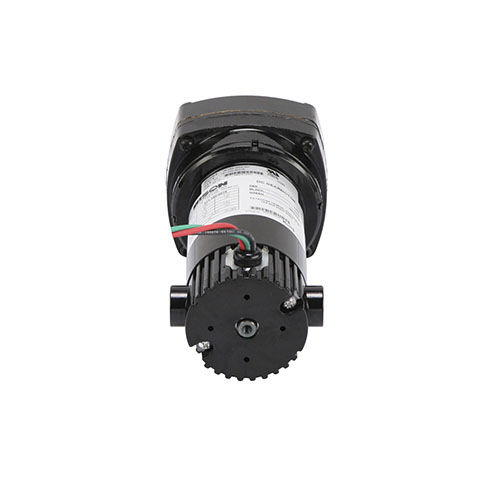

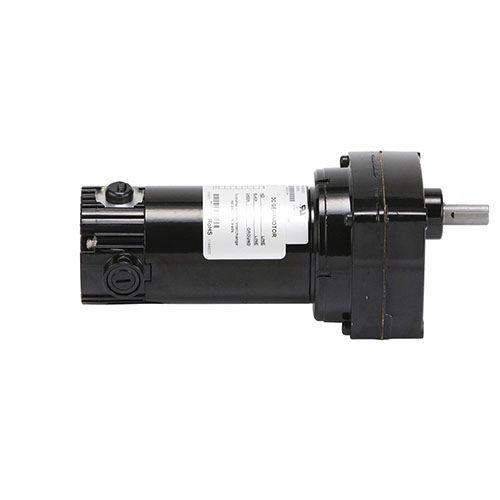

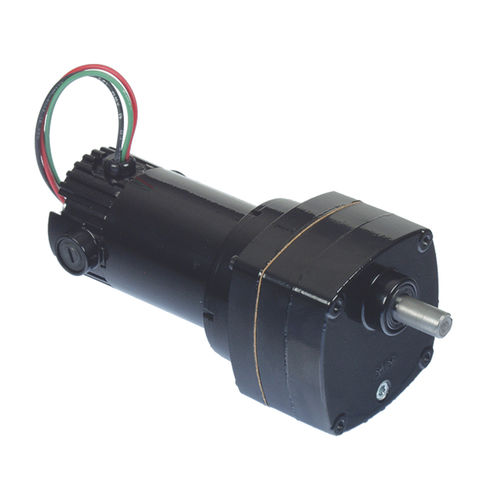

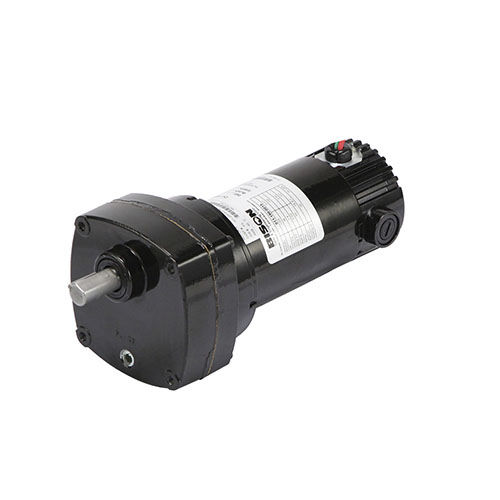

The 100 Series offers a wide speed range and many voltage options in an ultra-compact package. The 100 Series offers a speed range of 1.3-359 RPM and a torque range of 8-100 in-lbs.

Parameter Name	Parameter Value
Motor type	DC permanent magnet
Type	spur helical
Shaft orientation	parallel-shaft
Shaft configuration	solid-shaft
Power (W)	10 - 50
Voltage (V)	24 - 12
Torque (Nm)	1 - 5 5 - 10 10 - 20
Other characteristics	compact precision two-stage three-stage single-stage four-stage
Gear ratio (unit)	5 - 1369.3
