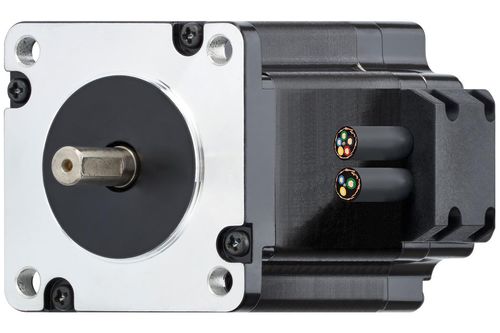

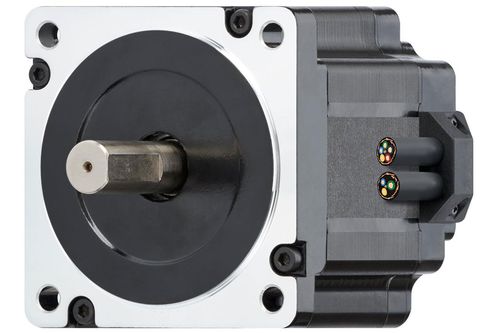

When combined with the appropriate gearbox, drylin® linear axes with the new BLDC motors achieve higher speed and greater torque. Energy is used more efficiently, as a result of which EC/BLDC motors are more durable and have a longer service life. Due to the fact that carbon brushes are not used, brushless motors are almost completely wear-resistant, generate less heat and enable longer, uninterrupted operation. The EC/BLDC motors have the same connections as NEMA 17/23/24/34 stepper motors.

• Brushless motors enable higher speed and greater torque
• Longer operating time and service life
• Virtually wear-free
• Less heat generated
• for all drylin® linear modules and axes with NEMA17/23/24/34 hole pattern

Parameter Name	Parameter Value
AC/DC	DC
Type	brushless
Voltage (V)	48 - 48
Protection class	IP40
Configuration	NEMA 17 NEMA 23 NEMA 24 NEMA 34
Power (W)	90 - 90 188 - 188 250 - 250 314 - 314
Intensity (A)	2.6 - 5
Torque (Nm)	0.6 - 3
Rotational speed (rpm)	3000 - 3000
Operating temperature (°C)	-10 - 50
