DC electric micro gearmotor

DC electric micro gearmotor

DC electric micro gearmotor

About


Enables automatic street illumination adjustment, depending on traffic and environment circumstances.

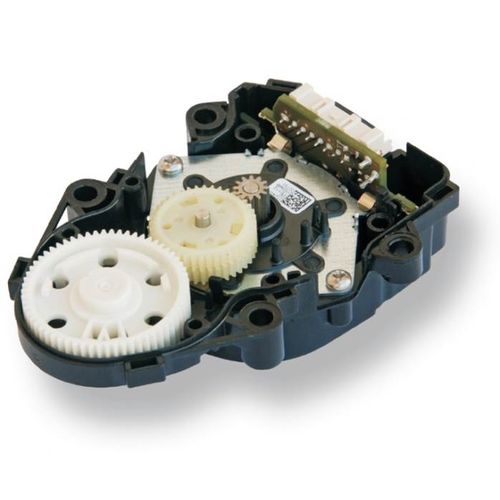

AFS actuator is a part of a high-end AFS headlamp. Its advantages are high torque, high speed, high mechanical stress resistance, wide temperature range conditions, EMC - ESD resistance and long lifetime. Actuator is open to different driving protocols (LIN, direct drive).

Based on a stepper motor, plastic gearbox and transmission gears designed and manufactured in Iskra Mehanizmi. Driving electronics was also designed and tested in house

Product Spec:
Motor:
• Type: stepper motor
• Step angle: 7,50
• Dimensions: 42 x 16 mm
• Nominal torque at 1000 pps: 40 mNm

Actuator:
• Dimensions: 94 x 46 x 32 mm
• Nominal torque at 1000 pps: 200 mNm
• Temperature range: -40 to +1300 C
• Accuracy of actuator: ± 20
• Voltage range: 9 – 18 V
• Driving principles: direct drive or LIN bus drive
• Lifetime: >15 years



PARAMETERS

Parameter Name Parameter Value
Motor type
DC
Type
spur
Shaft orientation
parallel-shaft
Torque (Nm)
0 - 0.1
Other characteristics
compact
