DC electric drive KPPT
DC drive KPPT is provided for:
•supply of power and auxiliary circuits of electric drive systems with electric motors;
•electric drive integrated control;
•protection, diagnostics, signaling and other service functions.

Benefits:
•starting current limitation (doesn’t exceed 1.5 value of the rated one);
•regenerative braking;
•controlled acceleration (stop), acceleration (stop) time is regulated within the limits of 0…600 s;
•short circuit current protection;
•overload protection;
•overvoltage protection and protection against voltage drop in supply network;
•protection against overvoltage in load circuit;
•limited impact on supply network;
•pusher main drive remote control via discrete and analog signals, as well as via field busbar (Modbus, Profibus DP).

•STRUCTURE
As an example we consider car humping device (of a car pusher) DC drive KPPT-630-3Т, which controls motors via trolley current lead.

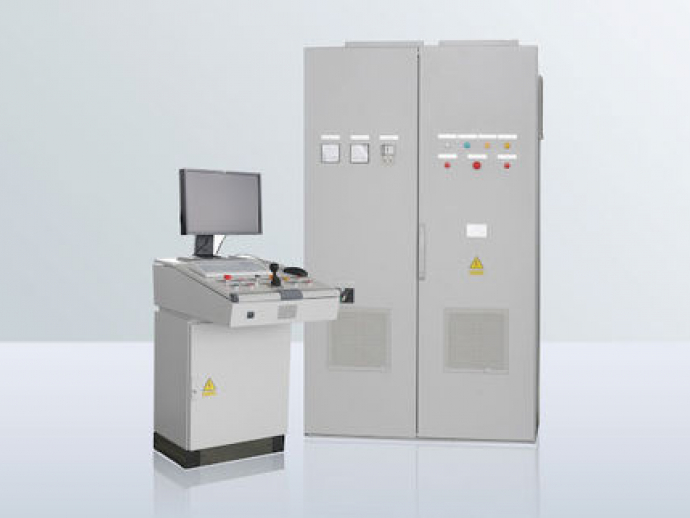

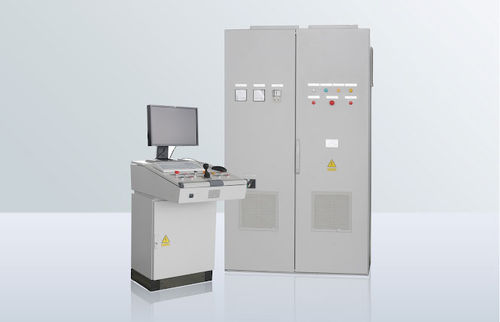

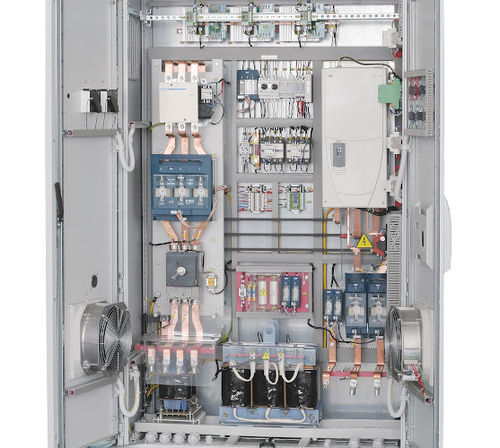

DC drive KPPT-630-3Т includes control cabinet SHU and control desk PU.

Depending on the particular site, equipment package can include: PLC and industrial PC based automated control system, located in control system cabinet (SHSU) or in control desk PU, car coupler control boxes, contact switches and other components.

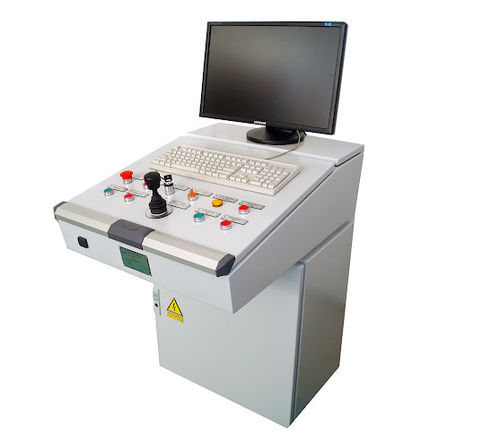

Control cabinet SHU and control system cabinet SHSU are installed in electrical equipment room, control desk PU is installed at operator's post. Control cabinet SHU, control system cabinet SHSU and control desk PU are resistant to external influence of climatic factors, placement category 4 according to GOST 15150.

Parameter Name	Parameter Value
Type	with analog interface
Other characteristics	integrated Modbus PROFIBUS
