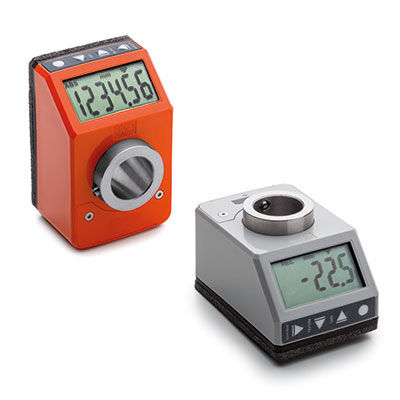

BASE AND CASE
High-resistance polyamide based (PA) technopolymer.
Black base.
Case in the following colours:
- C2: RAL 2004 orange, glossy finish.
- C3: RAL 7035 grey, glossy finish.
Available on request in RAL 7021 grey-black colour (C1).
Cover with perfectly sealed gasket and AISI 304 stainless steel
UNI 6955 type self-tapping screws with six-lobe socket TORX®T06
(registered trademark by TEXTRON INC.).
The ultrasonic welding between the base and the case prevents
separation and avoids dust and liquid penetration.
BOSS
AISI 304 stainless steel with Ø 20 mm H7 reamed hole, fitting to shaft
by means of AISI 304 stainless steel grub screw, hexagon socket and
cup end UNI 5929-85, included in the supply.
WINDOW
Transparent polyamide based (PA-T) technopolymer, moulded over
the case and with a perfect seal. Resistant to solvents, oils, greases
and other chemical agents (avoid contact with alcohol during cleaning
operations).
DISPLAY
- 6-digit LCD of 12,0 mm height and special characters.
The visualization parameters can be set and modified by the operator
by means of appropriate keys:
- values displayed in mm, inches or degrees
- display of mode for use (absolute or incremental mode)
- reading orientation (right or reverse).
KEYBOARD
Polyester membrane. Resistant to solvents, alcohol, acids, alkalis.
INTERNAL GASKET
O-ring front sealing in NBR synthetic rubber, between the case and
the boss.
Brass bushing with double O-ring sealing in NBR synthetic rubber inside
the rear cavity of the base (DD52R-E-RF-SST-IP67).
REAR GASKET
Foam polyethylene, supplied.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured value |
position
|
| Display |
|
| Type |
hollow-shaft
|
| Other characteristics |
|
