Data tracking system SkyRail

Data tracking system SkyRail

Data tracking system SkyRail

About

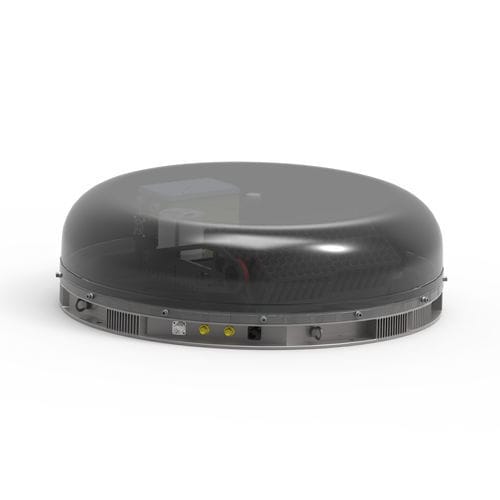

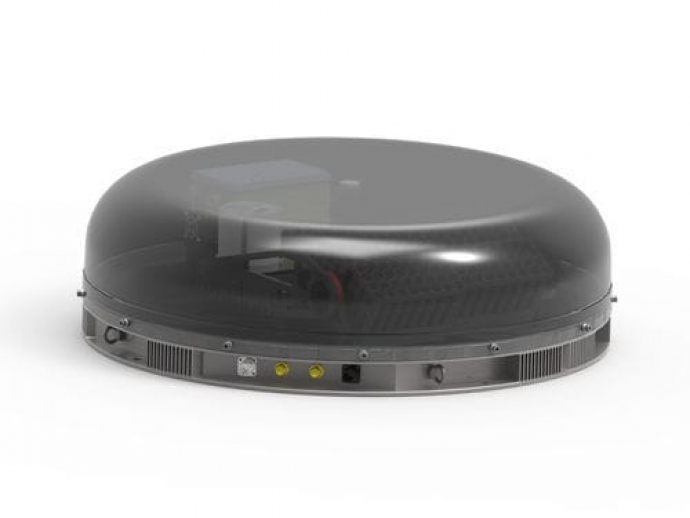

SkyRail provides a full duplex, broadband link on both civil and military Ka-band satellites from anywhere in the world, even in the most adverse weather and environmental conditions. This latest-generation SOTM terminal integrates the best of 2 axis mechanical tracking systems, with breakthrough pointing algorithms based on hypercomplex mathematics and satellite positions upgraded in real-time using NORAD data.

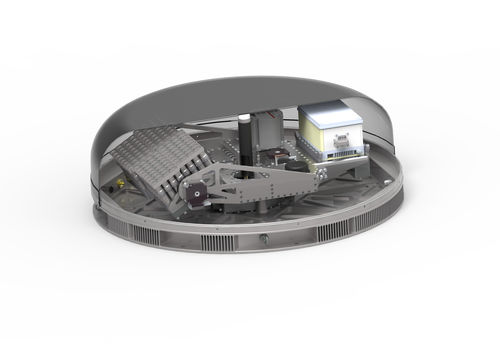

The horn array antenna has the best high-efficiency phased array technology and superlative RF-beam control.
This terminal is compatible with any type of modem and being extremely compact and low profile it can be installed on all types of railway vehicle roof remaining in the loading gauge. Its speed and precision of pointing ensure a dynamic, always impeccable connection with the satellite even during high speed journey.

Radiofrequency
The RF radiation panel can be equipped with a 5W, 25W or 50W BUC. The radiation lobes and efficiency remain optimal to any degree of pointing in space both in azimuth and elevation and this feature distinguishes it from all other satcom on the move equipment.
The use of horn array antenna provides peculiar advantages with respect to printed phased array or classic dishes: the nominal (relative) efficiency is higher, the equivalent gain using a conventional parabolic reflector needs more than 15% of irradiant surface to be achieved, and on top of this the aspect-ratio of the horn array panel gives possibility to create more compact and aerodynamic SOTM systems perfectly suitable on vehicles and aircraft. The horn array modularity enhances the capability to deliver to the market custom solutions with shorter design time.
