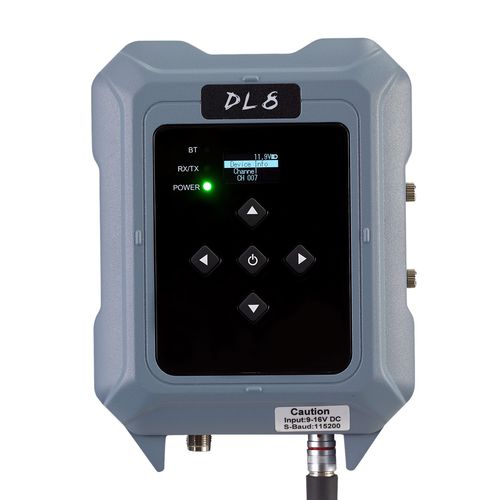

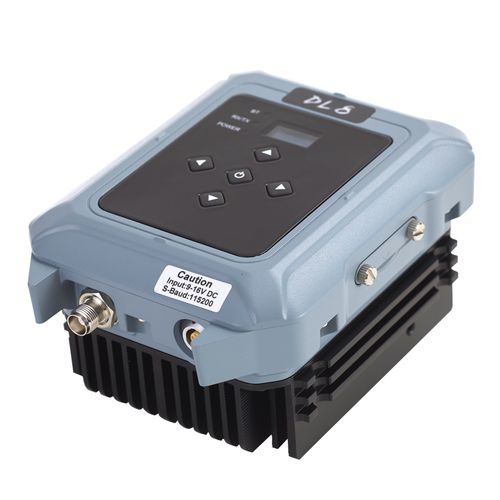

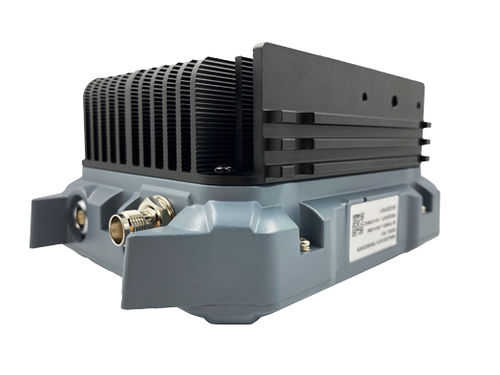

The DL8 is a UHF radio modem based on CHCNAV's technical expertise and extensive field work experience. With many innovative features, the DL8 provides reliable base-to-rover RTK GNSS corrections over long communication distances.
Commonly used frequency channels can be preset and the output power can be adjusted from 5 to 28 W according to the environmental constraints of the project. The customizable parameter setting function allows operators to easily start the DL8 radio modem by simply pressing the corresponding control buttons

FIELD-PROVEN PRODUCTIVITY AT ITS BEST
The DL8 offers the highest level of performance and reliability for long-range GNSS application any harsh environment.
• - High power UHF data link for GNSS applications.
• - Configuration over a full 70 MHz frequency range.
• - Six power levels adjustable from 5 W to 28 W.
• - Channel spacing selectable at 12.5 kHz or 25 kHz.
• - Support industry-standard UHF protocols.
• - All-weather, water and dustproof rugged IP67 rating.

Parameter Name	Parameter Value
Type	Data Terminal Unit
Network	UHF GNSS
Application	industrial outdoor
Mounting	outdoor portable
Other characteristics	long-range high-speed multi-channel
