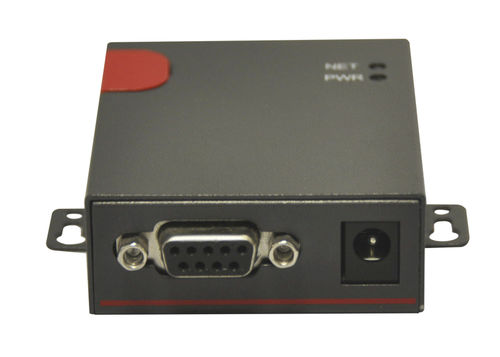

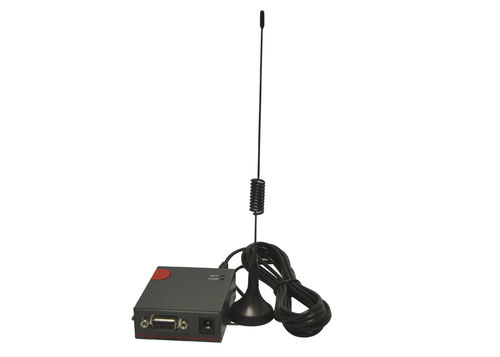

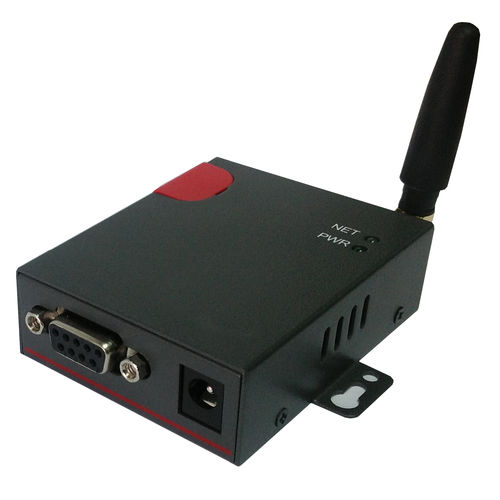

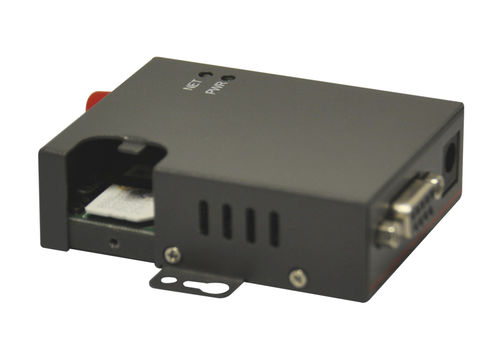

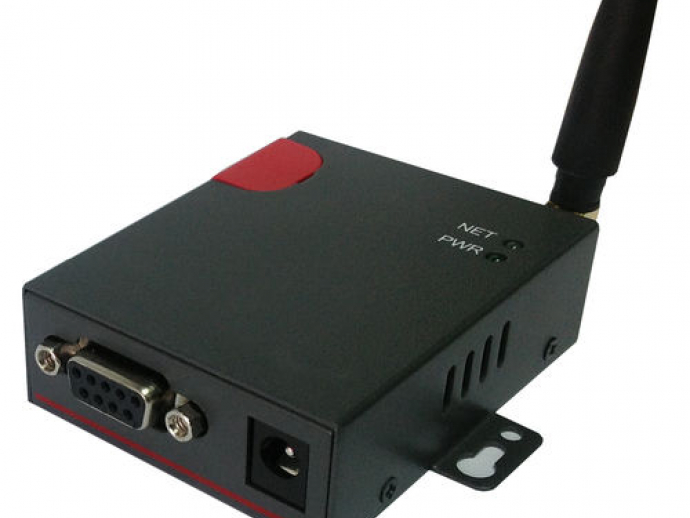

The rugged D80-3 series serial to IP 3G modem (called DTU as well) is the cellular terminal has been developed especially for M2M application. It provides RS232/RS-485/RS-422/TTL interface and is equipped with PPP, TCP/IP and DDP protocol,it could convert user's serial data into IP data and then transmits the data to the customer’s data service center through complete transparent data channel over 3G HSPA+/HSDPA/GPRS mobile network, allows a simple and rapid integration of cellular network connectivity into M2M applications.
With the robust, reliable, long life and compact metal case design, the D80 DTU ideally adapts to onboard standard, easy to deploy and maintain, it has been widely applied in many fields worldwide, such as power SCADA, oil field, coal mine, weather forecast, environment protection, water conservancy, heating, natural gas, petroleum and so on.
Basic Features
Optimized EMC design
Support PPP, TCP/IP, UDP/IP and Ping protocol
Industrial 3G cellular module
Support APN and VPDN wireless private network
Support short message service (SMS)
Support transparent data transmission
Support data service center with dynamic IP address
Support LED status indication
Wide range voltage input
Smart power management
External power on/off control
Reliable, flexible and easy to deploy
Optional Features
Multiple operation mode
Always online: automatically attaches 3G Celullar when powered on
automatically redials when off line and keep line alive
Offline when idle and trigged online by user data, ring or SMS
GPRS channel and SMS mutual backup
Online/offline control by commands via user equipment
Data loop test
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Network |
|
| Application |
|
| Mounting |
|
| Other characteristics |
|
