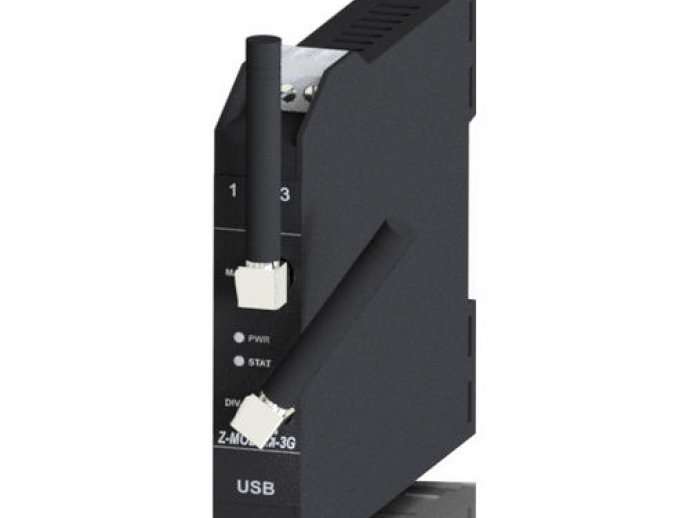

Z-MODEM-3G is a 3G+ industrial modem with a micro USB interface. The rated input voltage of the module varies in the range of 10..40 Vac and 19.. 28 Vdc with 2W (standby) and 5 W (max) consumption. Z-MODEM-3G is equipped with two SMA-type antenna connectors and a standard SIM card slot (21 x 15 mm). Designed for quick assembly on DIN 46277, Z-MODEM-3G is ideal for automation applications, M2M (Machine to Machine), remote control, environmental monitoring, security, and remote I / O. The suitable use and perfect combination is with SENECA's CPUs, for example, Z-TWS4 or Z-PASS1. Z-MODEM-3G includes only 1 SMA Antenna. The second SMA socket named DIV is used to install an auxiliary antenna improving the reception signal (see accessories).

Power Supply: - 10..40 Vdc; 19..28 Vac
Insulation: - 1.500 Vac
Operating Temperatura: - -20..+60°C
Communication Interface: - micro USB
Supported Protocols: - Ftp, Smtp, Pop3, http , TCP-IP
GSM: - Quadband (GSM 850MHz, EGSM 900MHz, DCS 1800MHz, PCS 1900MHz)
3G+: - HSPA+, HSDPA, HSUPA
Data Download transfer: - max. 14.4 Mbps
Data Uplink transfer: - max. 5.76 Mbps

Parameter Name	Parameter Value
Type	data
Network	GSM HSDPA 3G
Application	industrial
