About

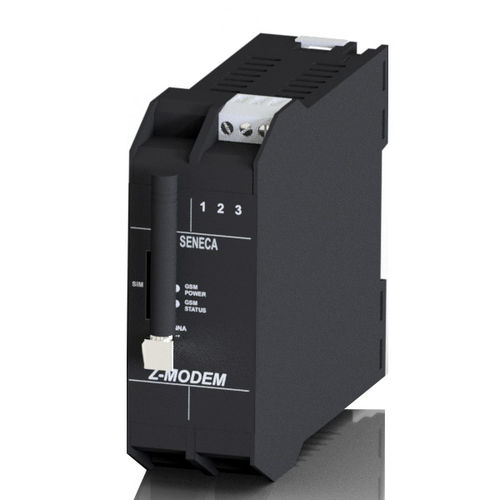

Z-MODEM is a GSM / GPRS Quadband industrial modem with an RS232 serial interface. The rated input voltage of the module varies in the range 11..40 Vac and 19.. 28 Vdc with 2W (standby) 6.5 W (max) consumption. Z-MODEM is equipped with SMA type antenna connector and standard SIM card slot (21 x 15 mm). Designed for quick assembly on DIN 46277, Z-MODEM is ideal for automation applications, M2M (Machine to Machine), remote control, environmental monitoring, security, and remote I / O.
Power Supply: - 11..40 Vdc; 19..28 Vac
Insulation: - 1.500 Vac
Operating Temperatura: - -10..+50°C
Serial Interface: - RS232
Supported Protocols: - Ftp, Smtp, Pop3, http , TCP-IP
GSM: - Quadband (GSM 850MHz, EGSM 900MHz, DCS 1800MHz, PCS 1900MHz)
GPRS: - GPRS data downlink transfer
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
data
|
| Network |
|
| Application |
industrial
|
