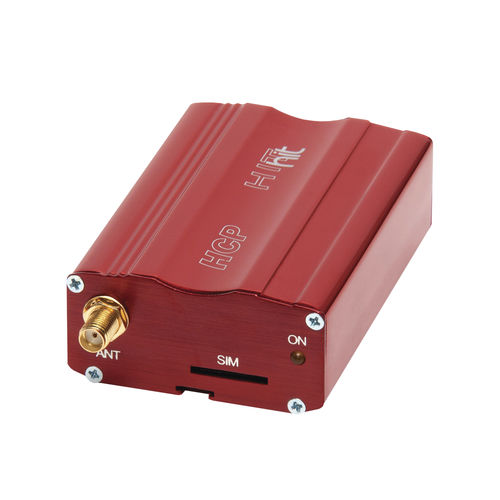

New LTE modem in Hit family of HCP communication devices. Equipped with PLS8 LTE M2M module from Gemalto Cinterion guaranties safe, fast and reliable data transfer.

Interfaces:
USB 2.0 HS interface up to 480 Mbps
DC 2.1 jack for power supply
Push-push SIM interface for 1.8/3V SIM cards
SMA antenna connector (female)

Major features:
LTE Cat. 3
DL: max. 100 Mbps, UL: max. 50 Mbps, 2x2 DL MIMO
HSPA+ DL Cat.24 / UL Cat. 6, Dual Carrier
DL: max. 42 Mbps, UL: max. 5.76 Mbps
EDGE Class 12 data rates
DL: max. 237 kbps, UL: max. 237 kbps
GPRS Class 12 data rates
DL: max. 85.6 kbps, UL: max. 85.6 kbps
Supplementary services & USSD support
SMS text and PDU mode
Verizon APN class handling (PLS8-V /-X)
USB interface supports multiple composite modes
and a Linux-/Mac- compliant mode
BIP (Bearer Independent Protocol)
IP services (Client & server, TCP/IP & UDP, transparent & nontransparent)
Multiplexer according to 3GPP TS 27.010

General Features:
Penta Band LTE: 800/900/1800/2100/2600 MHz;
FDD-Band (20,8,3,7,1); Tri Band UMTS (WCDMA):
900/1800/2100 MHz; FDD-Band (8,3,1);
LTE (FDD 3GPP Release 9; 2x2 DL-MIMO
SIM Application Toolkit, 3GPP release 99
Control via AT commands (Hayes, TS 27.007, TS 27.005)
Supply voltage range 8 - 30 V
Dimension: 78 x 54 x 26mm
Weight: approx. 130g
Operating Temperature Range: -40 °C to +85 °C
RoHS and REACH compliant

Parameter Name	Parameter Value
Type	data
Network	EDGE GSM USB GPRS IP 4G TCP/IP LTE UMTS WCDMA HSPA+ HSPA
Application	RoHS
Mounting	portable
